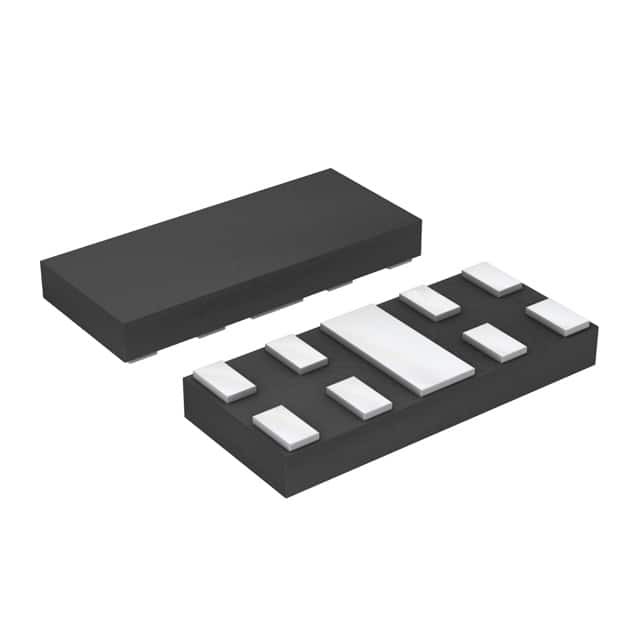

ESD5V3U4UHDMIE6327XTSA1

Part No ESD5V3U4UHDMIE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Infineon Technologies
Package Tape & Reel
Product Status Obsolete
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5.3V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 28V (Typ)
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power Line Protection No
Applications Ethernet, HDMI
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 9-XFDFN
Supplier Device Package PG-TSLP-9-1
Base Product Number ESD5V3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1316370-ESD5V3U4UHDMIE6327XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD5V3U4UHDMIE6327XTSA1 CAD Model

Description

ESD5V3U4UHDMIE6327XTSA1 from Infineon Technologies is a TVS diode designed for circuit protection in electronics that may be exposed to electrostatic discharge and transient events. Components in this category are commonly selected to help protect sensitive interfaces, signal lines, and compact consumer or industrial designs where robust surge protection and board-space efficiency matter. Engineers typically consider this type of device for mobile electronics, communications hardware, computing platforms, and embedded systems that require added reliability at the interface level. As an Infineon protection component, it is positioned for designers seeking established supplier support and application-focused ESD protection solutions. The current lifecycle status for this specific part is information not available, so design teams should confirm availability and long-term support directly with Infineon or authorized channel partners before committing to new production. RoHS compliance information is also not available in the provided data and should be verified using the latest manufacturer datasheet or compliance declaration.
