The ESD5V3S1B02LSE6327 is a unidirectional single-line ESD protection diode manufactured by Infineon Technologies. It's designed to safeguard sensitive electronic components from electrostatic discharge (ESD) damage, complying with IEC 61000-4-2 standards. The key features include a low clamping voltage and minimal capacitance, making it suitable for high-speed data interfaces where signal integrity is paramount.

Applications

• Smartphones and mobile devices
• Tablets and laptops
• High-speed data lines (USB 2.0, USB 3.0)
• HDMI interfaces
• Ethernet ports

Features

• Unidirectional configuration for effective ESD protection
• Extremely low clamping voltage to minimize stress on protected circuits
• Minimal capacitance to preserve signal integrity in high-speed applications
• Compliant with IEC 61000-4-2 standard for ESD immunity
• Small surface-mount package for space-constrained designs

Benefits

• Enhanced reliability of electronic devices by preventing ESD failures
• Improved signal integrity in high-speed data transmission
• Reduced design complexity due to the device's ease of use
• Cost-effective ESD protection solution
• Optimized performance in demanding applications

Additional Details

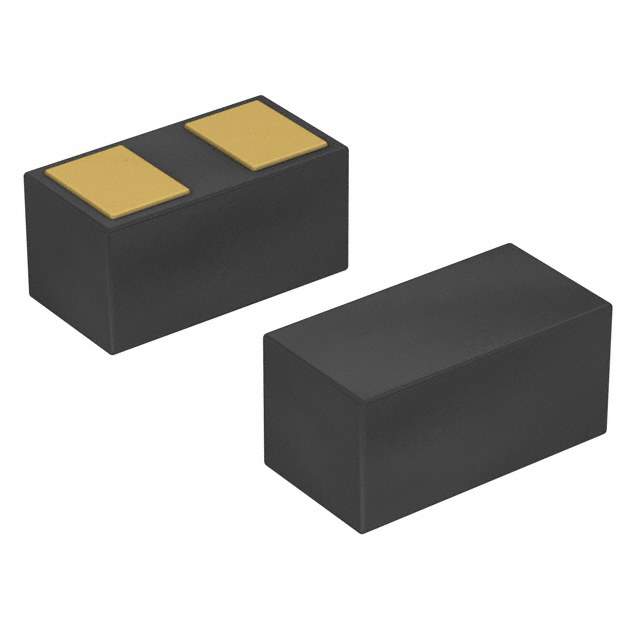

This ESD protection diode features a reverse standoff voltage of 5.3V. The ultra-low capacitance ensures that it does not significantly impact signal quality on high-speed data lines. It provides robust protection against ESD strikes, ensuring the reliable operation of the protected circuitry. It is commonly available in a very small leadless package (e.g., SOT-23 or similar) suitable for dense PCB layouts.
