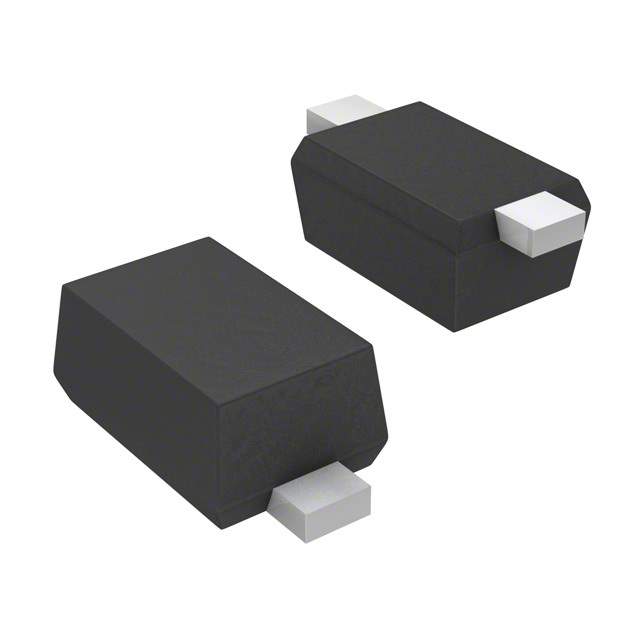

The ESD5V0L1B-02V is a unidirectional Electrostatic Discharge (ESD) protection diode manufactured by Infineon Technologies. This diode is designed to safeguard sensitive electronic components from the damaging effects of ESD events. It features a low clamping voltage and fast response time, making it ideal for protecting high-speed data lines and interfaces.

Applications

• USB interfaces: Protection for USB 2.0 and USB 3.0 data lines in computers, peripherals, and mobile devices.
• HDMI ports: ESD protection for HDMI interfaces in televisions, monitors, and set-top boxes.
• Ethernet ports: Safeguards Ethernet PHYs and controllers in network devices.
• Audio and video lines: Protection for audio and video signal lines in consumer electronics.
• Button and switch interfaces: ESD protection for user input interfaces in various electronic devices.

Features

• Unidirectional ESD protection: Specifically designed to protect against positive ESD strikes.
• Low clamping voltage: Reduces stress on protected components during ESD events.
• Fast response time: Quickly clamps ESD voltage to prevent damage.
• Low capacitance: Ensures signal integrity in high-speed data applications.
• Small package size: Facilitates compact designs.
• RoHS compliant: Environmentally friendly.

Benefits

• Increased system reliability: Protects sensitive components from ESD-induced failures, improving overall system reliability.
• Enhanced signal integrity: Low capacitance ensures minimal signal degradation in high-speed applications.
• Reduced field failures: Prevents ESD-related failures, reducing warranty claims and repair costs.
• Easy implementation: Simple to integrate into existing designs.
• Compliance with industry standards: Meets or exceeds industry standards for ESD protection.

Additional Details

The ESD5V0L1B-02V is characterized by its low breakdown voltage, clamping voltage, and capacitance. Its clamping voltage is typically specified at different ESD current levels as per IEC 61000-4-2. This device is commonly available in a small SOT-23 or similar surface-mount package. This allows for easy integration into compact electronic devices. Its compliance with RoHS standards ensures it is environmentally friendly and meets global regulatory requirements.
