Same model may have multiple batches, images only for reference.

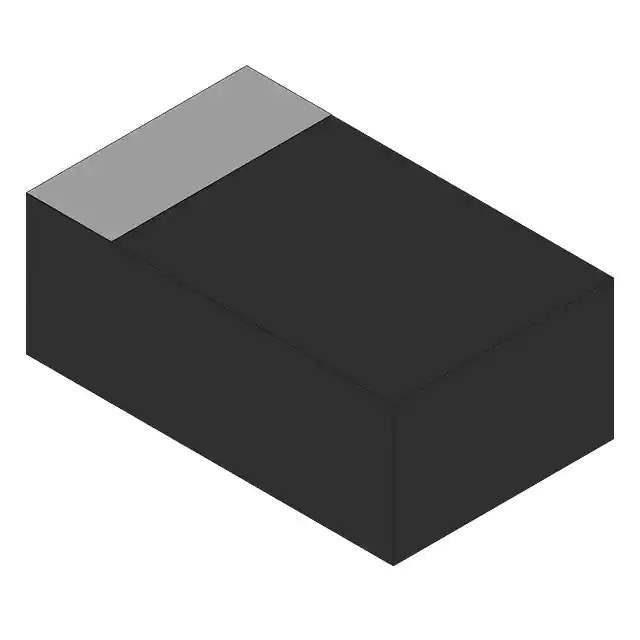

ESD24VL1B-02LRHE6327 Real Image
Same model may have multiple batches, images only for reference.

ESD24VL1B-02LRHE6327

Part No ESD24VL1B-02LRHE6327
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description MULTI-PURPOSE ESD DEVICE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Infineon Technologies
Package Bulk
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 24.3V
Voltage - Clamping (Max) @ Ipp 55V (Typ)
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power Line Protection No
Applications USB
Capacitance @ Frequency 2.5pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case SOD-882
Supplier Device Package PG-TSLP-2-17
Standard Package 4,157 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 738152-ESD24VL1B-02LRHE6327
Ultra Librarian 3D Model Ultra Librarian ESD24VL1B-02LRHE6327 CAD Model

Description

The 738152-ESD24VL1B-02LRHE6327 is a Zener type transient voltage suppressor (TVS) diode designed for circuit protection in USB applications.

  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 24.3V
  • Clamping Voltage: 55V @ a peak pulse current of 1A
  • Capacitance: 2.5pF @ 1MHz
  • Package: SOD-882
  • Manufacturer: Infineon Technologies
  • Operating Temperature: -55°C to 150°C
  • Status: active product
