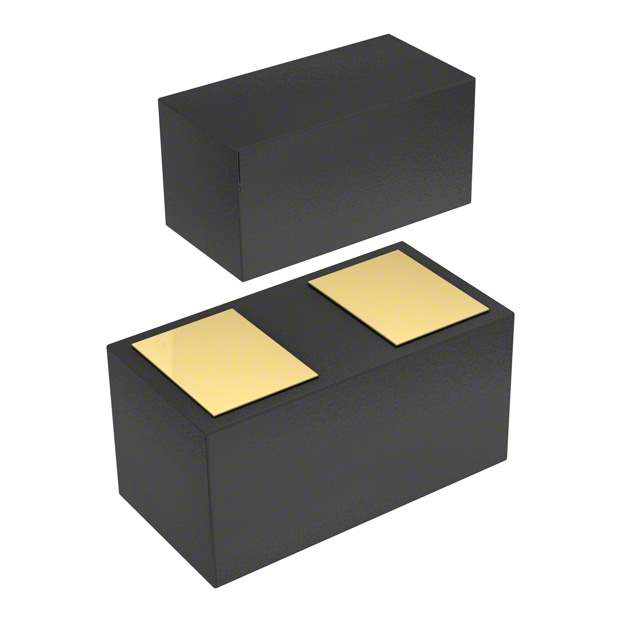

Same model may have multiple batches, images only for reference.

ESD110B102ELSE6327XTSA1

Name: ESD110B102ELSE6327XTSA1
Brand: Infineon Technologies
SKU: 1057850
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ESD110B102ELSE6327XTSA1
Manufacturer	Infineon Technologies
Catalog	TVS - Diodes
Description	TVS DIODE 18.5VWM 17VC TSSLP-2-4 / 17V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSSLP-2-4
Datasheet	ESD110B102ELSE6327XTSA1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Infineon Technologies
Package	Tape & Reel
Product Status	Obsolete
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18.5V (Max)
Voltage - Breakdown (Min)	20V
Voltage - Clamping (Max) @ Ipp	17V (Typ)
Current - Peak Pulse (10/1000µs)	1A (8/20µs)
Power Line Protection	No
Applications	RF Antenna
Capacitance @ Frequency	0.3pF @ 1MHz
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-4
Base Product Number	ESD110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	ESD110-B1-02ELS E6327,ESD110B102ELSE6327XTSA1DKR,2156-ESD110B102ELSE6327XTSA1-ITTR,ESD110B102ELSE6327XTSA1TR,INFINFESD110B102ELSE6327XTSA1,SP001061684,ESD110B102ELSE6327XTSA1CT
Standard Package	15,000
Win Source Part Number	1057850-ESD110B102ELSE6327XTSA1
Ultra Librarian 3D Model	Ultra Librarian ESD110B102ELSE6327XTSA1 CAD Model

Description

The Infineon Technologies 1057850-ESD110B102ELSE6327XTSA1 is a Zener type TVS - Diodes circuit protection device.

Application: RF Antenna
Package Type: 0201 (0603 Metric)
Supplier Device Package: PG-TSSLP-2-4
Channel: 1 bidirectional
Operating Temperature Range: -40°C to 85°C (TA)
ECCN: EAR99
REACH: Unaffected
