Same model may have multiple batches, images only for reference.

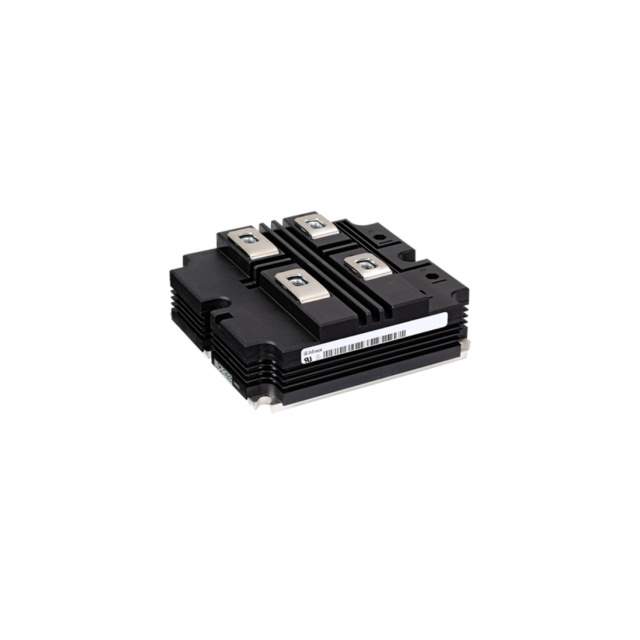

DD250S65K3C1NPSA1 Real Image
Same model may have multiple batches, images only for reference.

DD250S65K3C1NPSA1

Part No DD250S65K3C1NPSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description IHV IHM T XHP 3 3-6 5K / Diode Array 2 Independent Standard 6500 V 250A (DC) Chassis Mount Module
Datasheet
DD250S65K3C1NPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Infineon Technologies
Package Tray
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 6500 V
Current - Average Rectified (Io) (per Diode) 250A (DC)
Voltage - Forward (Vf) (Max) @ If 3.5 V @ 250 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 370 mA @ 3600 V
Operating Temperature - Junction -50°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package A-IHV130-6
Base Product Number DD250S65
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 448-DD250S65K3C1NPSA1,SP001670356
Standard Package 2
Win Source Part Number 1168083-DD250S65K3C1NPSA1
Ultra Librarian 3D Model Ultra Librarian DD250S65K3C1NPSA1 CAD Model

Description

The DD250S65K3C1NPSA1 is a rectifier diode array designed for use in high voltage applications.

  • Maximum Reverse Voltage: 6500V
  • Forward Voltage: 3.5V @ 250A
  • Current Reverse Leakage: 370mA @ 3600V
  • Junction Temperature Range: -50°C to 125°C
  • Mounting Type: Chassis Mount
  • Standard Package: 2
  • REACH: Unaffected
  • ECCN: EAR99
  • Alternative Part: 448-DD250S65K3C1NPSA1
  • Alternative Part: SP001670356
