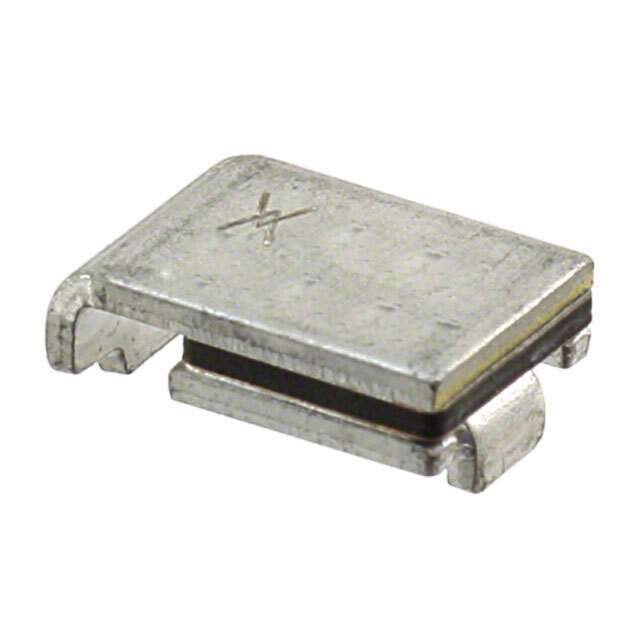

ASMD125F-2 Real Image
Same model may have multiple batches, images only for reference.

ASMD125F-2

Part No ASMD125F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Datasheet
ASMD125F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, ASMD
Package Tape & Reel
Type Polymeric
Voltage - Max 16V
Current - Max 40 A
Current - Hold (Ih) (Max) 1.04 A
Current - Trip (It) 2.46 A
Time to Trip 20 s
Resistance - Initial (Ri) (Min) 57 mOhms
Resistance - Post Trip (R1) (Max) 250 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 2-SMD
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.118" (3.00mm)
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1316052-ASMD125F-2
Ultra Librarian 3D Model Ultra Librarian ASMD125F-2 CAD Model

Description

The Littelfuse Inc. 1316052-ASMD125F-2 is a PolySwitch® ASMD series polymeric PTC resettable fuse.

  • Voltage Rating: 16V
  • Current Rating: 40 A
  • AEC-Q200: Yes
  • Thickness (Max): 0.118” (3.00mm)
  • Package/Case: 2-SMD
  • Resistance - Initial (Ri) (Min): 57 mOhms
  • Resistance - Post Trip (R1) (Max): 250 mOhms
  • Current - Hold (Ih) (Max): 1.04 A
  • Current - Trip (It): 2.46 A
  • Time to Trip: 20 s
  • Operating Temperature: -40℃ to 85℃
  • Popularity: Low
  • Supply and Demand Status: Shortage
