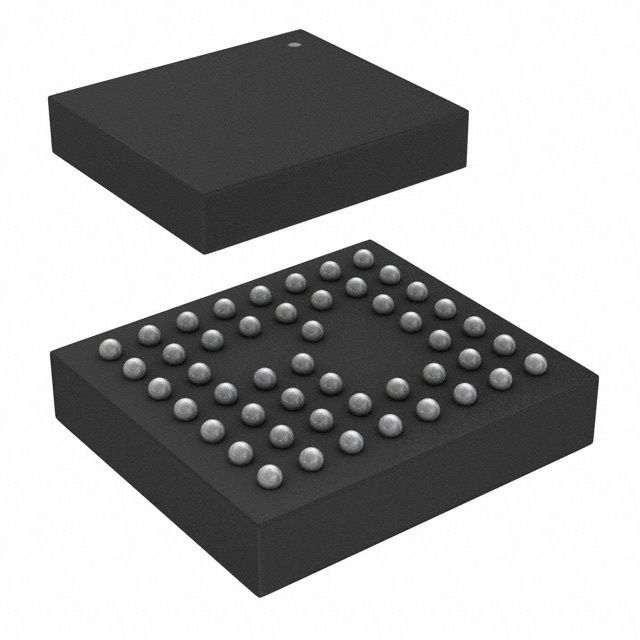

Same model may have multiple batches, images only for reference.
CYW20706UA2KFFB4GT Infineon Technologies
Same model may have multiple batches, images only for reference.

CYW20706UA2KFFB4GT

Part No CYW20706UA2KFFB4GT
Manufacturer Infineon Technologies
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 49TFBGA / IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 49-TFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Infineon Technologies
Series -
Package Tape & Reel
Product Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Modulation 4DQPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 12dBm
Sensitivity -96.5dBm
Memory Size 848kB ROM, 352kB RAM
Serial Interfaces I²C, I²S, SPI, UART
GPIO 24
Voltage - Supply 3.3V
Current - Receiving 12.5mA
Current - Transmitting 26.5mA
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Surface Mount
Package / Case 49-TFBGA
Supplier Device Package 49-FBGA (4.5x4)
Base Product Number CYW20706
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1352852-CYW20706UA2KFFB4GT
Ultra Librarian 3D Model Ultra Librarian CYW20706UA2KFFB4GT CAD Model

Description

The CYW20706UA2KFFB4GT is an RF transceiver IC with an integrated MCU from Infineon Technologies.

  • Operating Temperature: -30°C to 85°C
  • Frequency: 2.4GHz
  • Memory Size: 848kB ROM, 352kB RAM
  • Protocol: Bluetooth v4.2
  • Data Rate: Up to 2Mbps
  • Serial Interfaces: I²C, I²S, SPI, and UART
  • Package: 49-TFBGA
  • Mounting Type: Surface Mount
  • Product Status: Active
