Same model may have multiple batches, images only for reference.

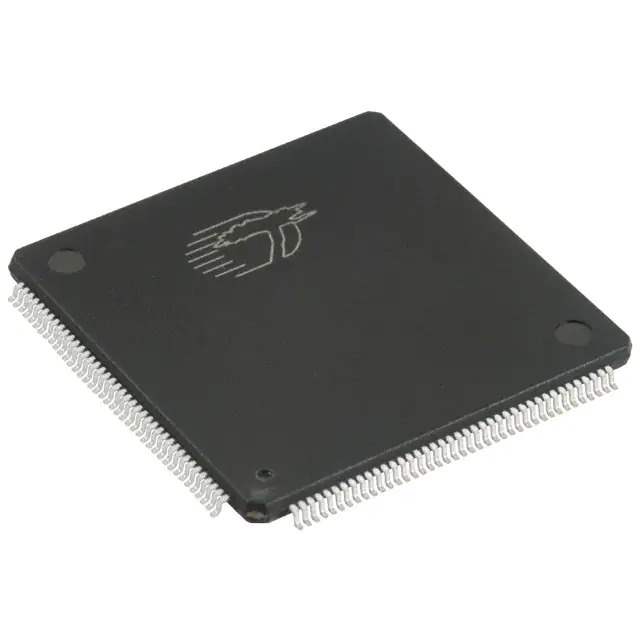

CY37256P160-125AXI Real Image
Same model may have multiple batches, images only for reference.

CY37256P160-125AXI

Part No CY37256P160-125AXI
Manufacturer Infineon Technologies
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 10NS 160TQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Infineon Technologies
Series Ultra37000™
Package Tray
Product Status Obsolete
Programmable Not Verified
Programmable Type In-System Reprogrammable™ (ISR™) CMOS
Delay Time tpd(1) Max 10 ns
Voltage Supply - Internal 4.5V ~ 5.5V
Number of Macrocells 256
Number of I/O 133
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 160-LQFP
Supplier Device Package 160-TQFP (24x24)
Base Product Number CY37256
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 581558-CY37256P160-125AXI
Ultra Librarian 3D Model Ultra Librarian CY37256P160-125AXI CAD Model

Description

The CY37256P160-125AXI is an obsolete complex programmable logic device (CPLD) from the Ultra37000™ series.

  • Features: In-system reprogrammability
  • Delay Time: 10ns
  • Voltage Supply Range: 4.5V to 5.5V
  • Macrocells: 256
  • Mounting Type: Surface Mount
  • Package: 160-LQFP
  • I/O Pins: 133
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • Manufacturer: Infineon Technologies
