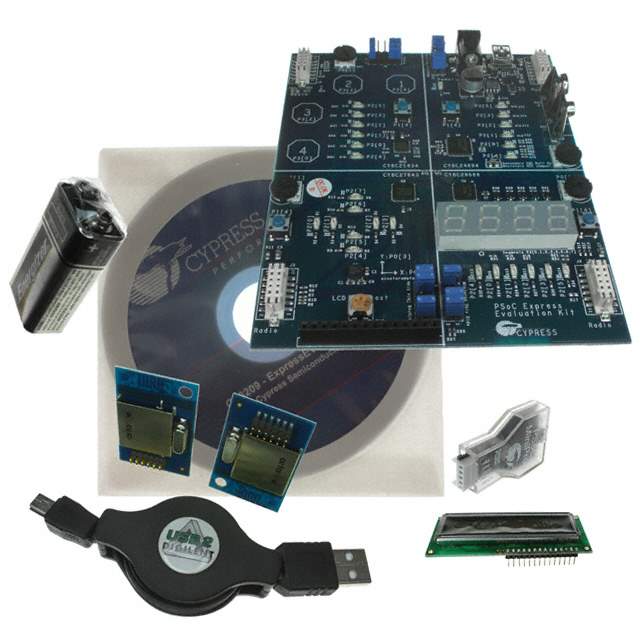

CY3209-EXPRESSEVK Real Image
Same model may have multiple batches, images only for reference.

CY3209-EXPRESSEVK

Part No CY3209-EXPRESSEVK
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Embedded - MCU, DSP
Description PSOC EXPRESS KIT EVAL BRD / PSoC® PSoC Express Evaluation Kit PSOC® CapSense M8C MCU 8-Bit Embedded Evaluation Board
Datasheet
CY3209-EXPRESSEVK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - MCU, DSP
Mfr Infineon Technologies
Series PSOC® CapSense
Package Box
Product Status Obsolete
Board Type Evaluation Platform
Type MCU 8-Bit
Core Processor M8C
Platform PSoC Express Evaluation Kit
Utilized IC / Part PSoC®
Mounting Type Fixed
Contents Board(s) , Cable(s) , LCD, Accessories, MiniProg Programmer
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1348302-CY3209-EXPRESSEVK
Ultra Librarian 3D Model Ultra Librarian CY3209-EXPRESSEVK CAD Model

Description

The CY3209-EXPRESSEVK is an evaluation board from Infineon Technologies.

  • Series: PSOC® CapSense
  • Core Processor: 8-bit M8C
  • Package: Box package
  • Includes: Board(s), cable(s), LCD, accessories, and a MiniProg programmer
  • Board Type: Evaluation platform
  • Designed for: PSoC Express Evaluation Kit platform
  • Excellent Choice for: Users who want to evaluate the performance of the PSoC® microcontroller.
