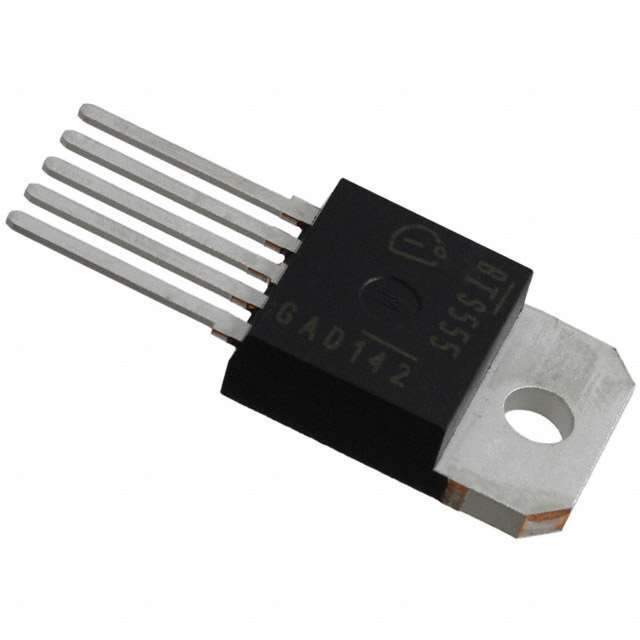

The BTS555 E3146 is a high-side power switch from Infineon Technologies, designed for automotive and industrial applications. It's part of the PROFET (PROtected Field Effect Transistor) family, offering protection features and diagnostic capabilities to ensure safe and reliable operation in demanding environments. It is designed to switch high current loads while providing comprehensive protection against overloads, short circuits, and overtemperature conditions.

Applications:

• Automotive Lighting: Used for controlling headlights, taillights, and other vehicle lighting systems.
• Automotive Body Control Modules: Integrated into body control modules for controlling various loads like window lifters and central locking systems.
• Industrial Automation: Employed in industrial control systems to switch inductive loads such as relays and solenoids.
• Power Distribution: Utilized in power distribution systems to control and protect electronic loads.
• Engine Management Systems: Incorporated into engine management systems for switching actuators and sensors.

Features:

• Overload Protection: Automatically shuts down the output in case of an overload condition.
• Short Circuit Protection: Protects the switch and the load from short circuits.
• Overtemperature Protection: Shuts down the output if the temperature exceeds the specified limit.
• Diagnostic Feedback: Provides status information about the switch's operating condition.
• Current Limitation: Limits the output current to a safe level during overload or short circuit conditions.
• Logic Level Input: Compatible with standard logic levels for easy control.

Benefits:

• Enhanced System Reliability: Protection features ensure reliable operation and prevent damage to the switch and connected loads.
• Reduced Component Count: Integrated protection and diagnostic functions minimize the need for external components.
• Improved Safety: Protects against potentially hazardous conditions such as overloads and short circuits.
• Simplified Design: Logic level input and diagnostic feedback simplify system design and troubleshooting.
• Cost-Effective Solution: Integrated features provide a cost-effective solution for power switching and protection.

Additional Details:

The BTS555 E3146 typically features a low on-resistance (RDS(on)), minimizing power dissipation and improving efficiency. It operates with a supply voltage range suitable for automotive applications (e.g., 12V or 24V systems). The diagnostic feedback provides information about the load current, switch temperature, and fault conditions, enabling proactive maintenance and troubleshooting. The device is usually packaged in a robust housing suitable for harsh automotive and industrial environments, like a PG-DSO-12. The BTS555 E3146 utilizes a CMOS compatible input for easy control from a microcontroller.

The BTS555's current limiting feature is essential in preventing damage during short circuit events. The device shuts off if the defined current limit is reached. After a defined cooling-off period, the device will try to switch on again. If the short circuit persists the device will enter shutdown again to prevent permanent damage to the device or the load. The diagnostic pin signals the microcontroller of fault events. This enables intelligent error handling in the target system.
