Same model may have multiple batches, images only for reference.

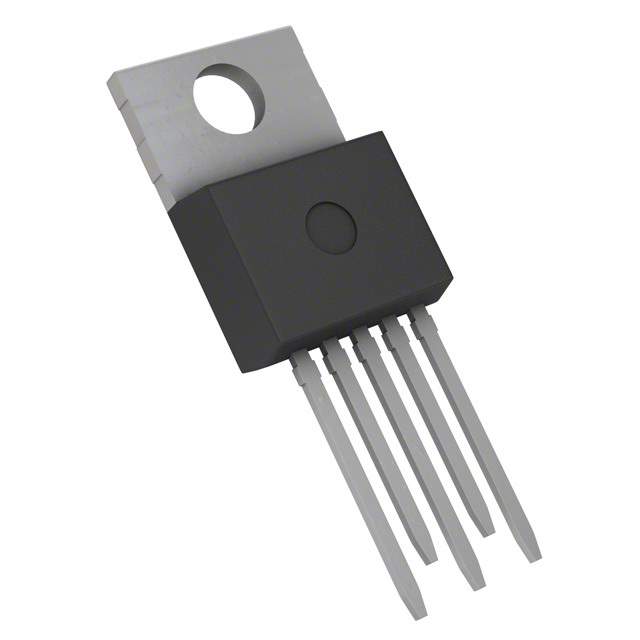

BTS410E2E3043NKSA1 Real Image
Same model may have multiple batches, images only for reference.

BTS410E2E3043NKSA1

Part No BTS410E2E3043NKSA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC HIGH SIDE PWR SWITCH TO220-5 / Smart High-Side Current Limit Switch
Datasheet
BTS410E2E3043NKSA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series PROFET
Packaging Tube
Part Status Obsolete(EOL)
Switch Type General
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 4.7 V ~ 42 V
Current - Output (Maximum) 1.6A
Rds On (Typ) 190 mOhm
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package TO-220-5
Manufacturer Package P-TO220-5
Win Source Part Number 770587-BTS410E2E3043NKSA1
Popularity Medium
Supply and Demand Status Limited
Family Name BTS 410 E2
Introduction Date March 01, 1997
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BTS410E2E3043NKSA1 CAD Model

Description

The BTS410E2E3043NKSA1 is a N-channel high side switch manufactured by Infineon Technologies.

  • Series: PROFET
  • Voltage Load: 4.7V to 42V
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Package: TO-220-5
  • Current-Output (maximum): 1.6A

The device is equipped with auto restart and status flag and has a voltage load of 4.7V to 42V. The device is rated for an operating temperature range of -40°C to 150°C (TJ) and comes in a TO-220-5 package. The device has a current-output (maximum) of 1.6A and a popularity of medium in the market. The device is currently obsolete.
