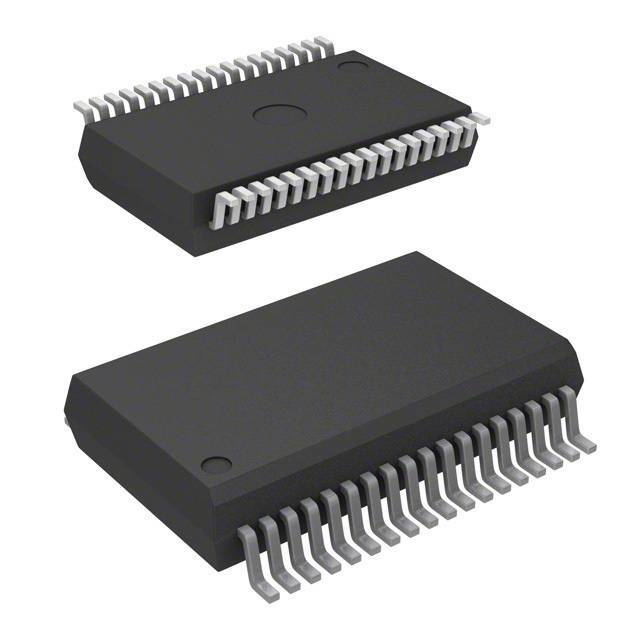

BTM7755GXUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BTM7755GXUMA1

Part No BTM7755GXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 36DSO / H-Bridge Motor Driver Automotive 36-Pin DSO T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series TrilithIC
Packaging Reel package
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Applications General
Output Current 12A
Operating Supply Voltage 8 V ~ 18 V
Voltage - Load 8 V ~ 18 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 36-BSSOP (0.295", 7.50mm Width)
Win Source Part Number 770568-BTM7755GXUMA1
Popularity Medium
Supply and Demand Status Limited
Family Name BTM7755
Introduction Date May 28, 2010
ECCN EAR99
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian BTM7755GXUMA1 CAD Model

Description

The Infineon Technologies BTM7755GXUMA1 is a fully integrated driver IC that belongs to the TrilithIC series. It is designed for use in brushed DC motor control applications. The IC has a half-bridge output configuration, and it can support an output current of up to 12A. The operating supply voltage range for the IC is 8 V to 18 V. The BTM7755GXUMA1 is packaged in a 36-BSSOP package, which is mounted on SMD. The IC has a parallel interface and is ideal for use in general applications.

  • Output Current: Up to 12A
  • Operating Supply Voltage: 8 V to 18 V
  • Package: 36-BSSOP
  • Mounting: SMD
  • Interface: Parallel
