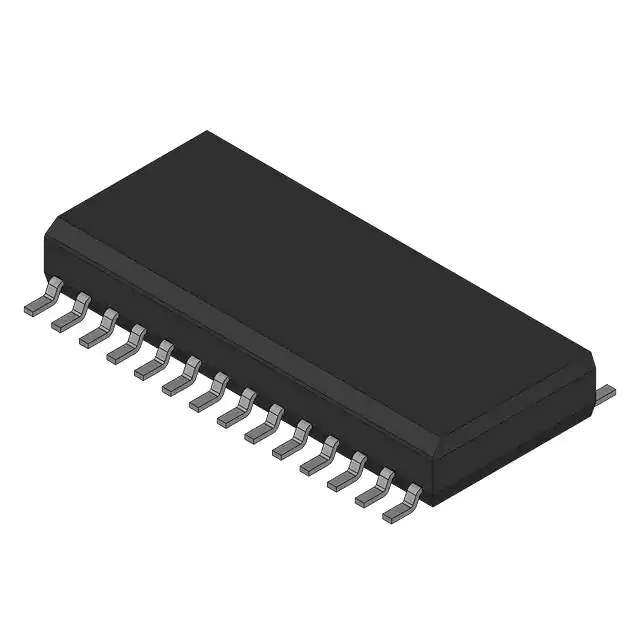

BTM7710G Real Image
Same model may have multiple batches, images only for reference.

BTM7710G

Part No BTM7710G
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description INTEGRATED FULL-BRIDGE DRIVER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series TrilithIC
Package Bulk
Product Status Obsolete
Switch Type General Purpose
Number of Outputs 4
Output Configuration High Side
Output Type N-Channel
Voltage - Load 1.8V ~ 42V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 8A
Rds On (Typ) 70mOhm
Input Type Non-Inverting
Features Slew Rate Controlled, Status Flag
Fault Protection Open Load Detect, Over Temperature, Short Circuit, UVLO
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-DSO-28-22
Package / Case 28-SOIC (0.295", 7.50mm Width)
Base Product Number BTM7710
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 572789-BTM7710G
Ultra Librarian 3D Model Ultra Librarian BTM7710G CAD Model

Description

The 572789-BTM7710G is a power distribution switch and load driver integrated circuit from Infineon Technologies.

  • Series: TrilithIC
  • Features: Slew Rate Control, Status Flag
  • Output Configuration: High Side
  • Maximum Output Current: 8A
  • Voltage Load Range: 1.8V to 42V
  • Typical Rds On: 70mOhm
  • Mounting Type: Surface Mount
  • Package: 28-SOIC
  • Fault Protection: Open Load, Over Temperature, Short Circuit, Undervoltage Lockout
  • Operating Temperature Range: -40°C to 150°C
