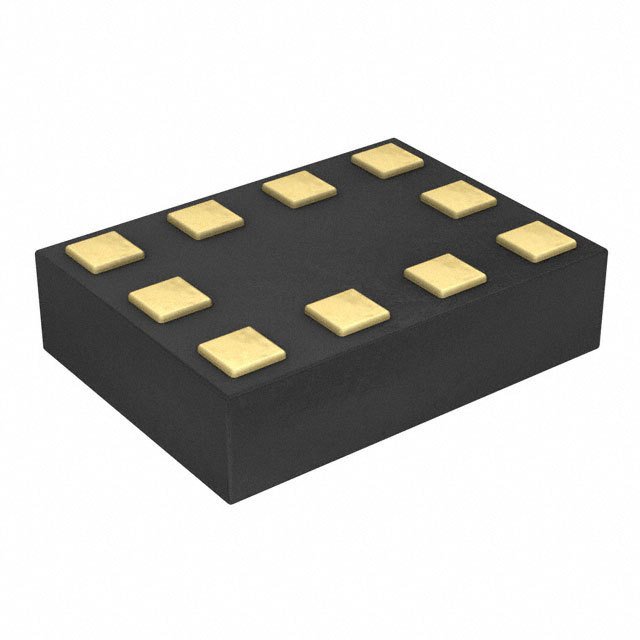

Same model may have multiple batches, images only for reference.
BGSA12GN10E6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BGSA12GN10E6327XTSA1

Part No BGSA12GN10E6327XTSA1
Manufacturer Infineon Technologies
Catalog RF Switches
Description IC RF SWITCH SPDT 5GHZ TSNP10-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Infineon Technologies
Package Tape & Reel
Product Status Active
RF Type Cellular, 3G, 4G
Circuit SPDT
Frequency Range 100MHz ~ 5GHz
Isolation 20dB
Insertion Loss 0.39dB
Test Frequency 2.69GHz
Features DC Blocked, Single Line Control
Impedance 50Ohm
Voltage - Supply 1.8V ~ 3.6V
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Surface Mount
Package / Case 10-XFQFN
Supplier Device Package PG-TSNP-10-1
Base Product Number BGSA12
Standard Package 7,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 438022-BGSA12GN10E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BGSA12GN10E6327XTSA1 CAD Model

Description

The BGSA12GN10E6327XTSA1 is an RF switch designed for use in RF and wireless applications.

  • Features: DC blocking and single line control capabilities
  • Package Type: tape and reel
  • Standard Package: 7,500 pieces
  • Impedance: 50 Ohms
  • Test Frequency: 2.69GHz
  • Frequency Range: 100MHz to 5GHz
  • Insertion Loss: 0.39dB
  • Isolation: 20dB
  • Type: SPDT (Single Pole Double Throw)
  • Voltage Supply: 1.8V to 3.6V
  • Mounting: surface mountable
  • Package/Case: 10-XFQFN package/case
  • Product Status: active
  • Manufacturer: Infineon Technologies
  • REACH Regulations: unaffected
  • MSL Level: 1
  • Applications: suitable for use in cellular, 3G, and 4G applications
