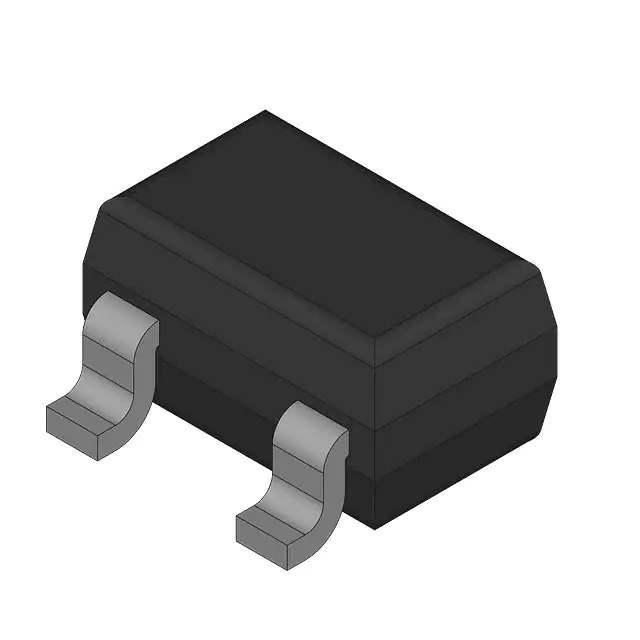

BAT15-05W Real Image
Same model may have multiple batches, images only for reference.

BAT15-05W

Part No BAT15-05W
Manufacturer Infineon Technologies
Catalog RF Diodes
Description RF MIXER/DETECTOR SCHOTTKY DIODE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Infineon Technologies
Package Bulk
Product Status Active
Diode Type Schottky - 2 Pair Common Cathode
Voltage - Peak Reverse (Max) 4V
Current - Max 110 mA
Capacitance @ Vr, F 0.5pF @ 0V, 1MHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating 150°C (TJ)
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Standard Package 1,731 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568804-BAT15-05W
Ultra Librarian 3D Model Ultra Librarian BAT15-05W CAD Model

Description

The 568804-BAT15-05W is a Schottky diode designed for RF applications. 568804-BAT15-05W is the product and Infineon Technologies is the manufacturer.

  • Configuration: 2 Pair Common Cathode
  • Maximum Current: 110 mA
  • Peak Reverse Voltage: 4V
  • Power Dissipation: 100 mW
  • Capacitance: 0.5pF @ 0V and 1MHz
  • Package: SC-70, SOT-323
  • Status: Active
