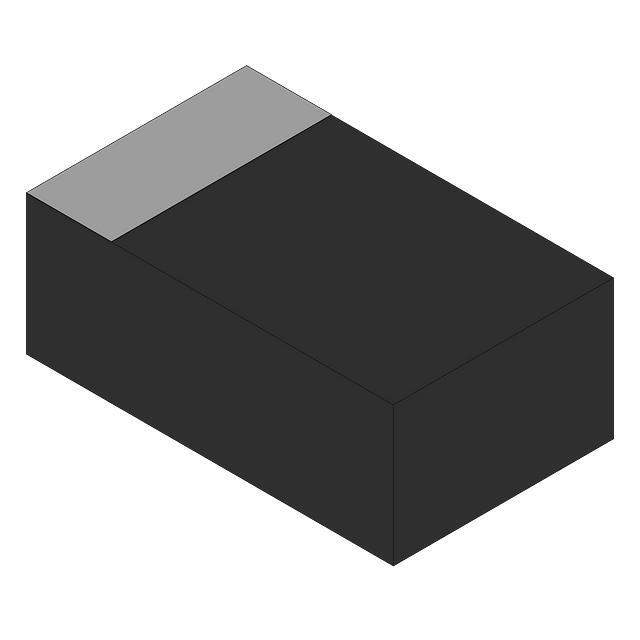

BAS4002LE6327XTMA1 Real Image
Same model may have multiple batches, images only for reference.

BAS4002LE6327XTMA1

Part No BAS4002LE6327XTMA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 120MA TSLP-2 / Diode Schottky 40 V 120mA Surface Mount PG-TSLP-2-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Infineon Technologies
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 120mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 40 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 100 ps
Current - Reverse Leakage @ Vr 1 µA @ 30 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Surface Mount
Case / Package SOD-882
Supplier Device Package PG-TSLP-2-1
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number BAS4002
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAS4002LE6327XT,INFINFBAS4002LE6327XTMA1,448-BAS4002LE6327XTMA1DKR,BAS4002LE6327XTMA1TR,448-BAS4002LE6327XTMA1CT,BAS 40-02L E6327,BAS 40-02L E6327-ND,448-BAS4002LE6327XTMA1TR,2156-BAS4002LE6327XTMA1,BAS4002LE6327XTMA1TR-ND,SP000013549
Standard Package 15,000
Win Source Part Number 1325123-BAS4002LE6327XTMA1
Ultra Librarian 3D Model Ultra Librarian BAS4002LE6327XTMA1 CAD Model

Description

The Infineon Technologies BAS4002LE6327XTMA1 is a Schottky diode designed for rectifiers.

  • Manufacturer: Infineon Technologies
  • Package: SOD-882
  • Packaging: Reel-TR
  • Standard Package: 15,000
  • Mounting: Surface mount
  • Voltage DC Reverse (Vr) (Max): 40 V
  • Average Rectified Current (Io): 120mA
  • Voltage Forward (Vf) (Max) @ If: 1 V @ 40 mA
  • Reverse Recovery Time (trr): 100 ps
  • Current Reverse Leakage @ Vr: 1 µA @ 30 V
  • Capacitance @ Vr, F: 5pF @ 0V, 1MHz
  • Operating Temperature Range: -55°C to 150°C
