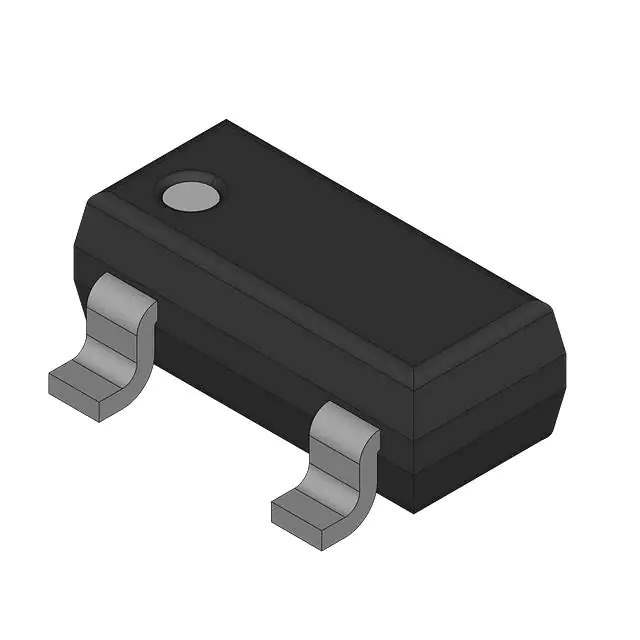

BAL99 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Infineon Technologies
Series Automotive, AEC-Q101
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 1 µA @ 70 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT23-3 (TO-236)
Operating Temperature - Junction 150°C (Max)
Standard Package 8,959 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568555-BAL99
Ultra Librarian 3D Model Ultra Librarian BAL99 CAD Model

Description

The Infineon Technologies electronic component with Win Source Part Number 568555-BAL99 is a rectifier diode.

  • Category: Discrete Semiconductor Products
  • Series: Automotive
  • Standard: AEC-Q101
  • Recovery Speed: Fast (<500ns)
  • Current Rating: >200mA
  • Package Type: Bulk
  • Standard Package Quantity: 8,959 pieces
  • Maximum DC Reverse Voltage: 80V
  • Average Rectified Current: 250mA
  • Forward Voltage Drop: 1.25V @ 150mA
  • Reverse Recovery Time: 4ns
  • Leakage Current: Low @ 70V
  • Maximum Junction Temperature: 150°C
  • Mounting Type: Surface Mount
  • Package/Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT23-3 (TO-236)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8541.10.0070
  • Manufacturer: Infineon Technologies
  • Status: Active
