Same model may have multiple batches, images only for reference.

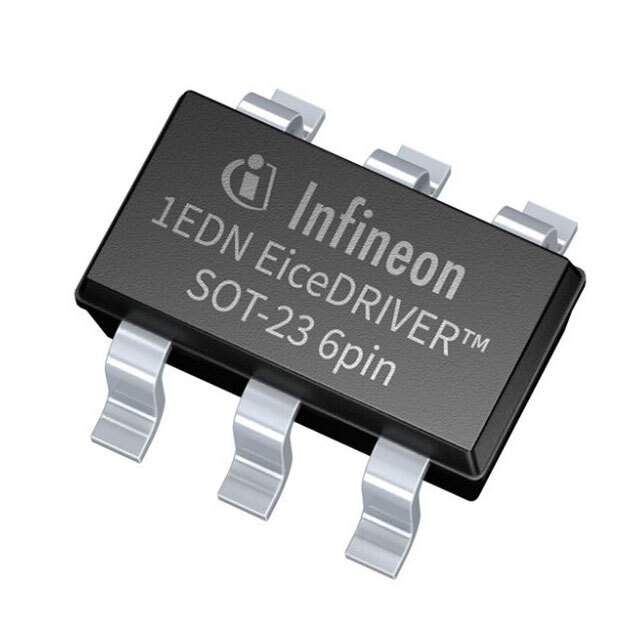

1EDN7511BXUSA1 Real Image
Same model may have multiple batches, images only for reference.

1EDN7511BXUSA1

Part No 1EDN7511BXUSA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRV HALF BRD/LOW SOT23-6 / Half-Bridge, Low-Side Gate Driver IC Inverting, Non-Inverting PG-SOT23-6-2
Datasheet
1EDN7511BXUSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Driven Configuration Half-Bridge, Low-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 4.5V ~ 20V
Logic Voltage - VIL, VIH 1.2V, 1.9V
Current - Peak Output (Source, Sink) 4A, 8A
Input Type Inverting, Non-Inverting
Rise / Fall Time (Typ) 6.5ns, 4.5ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOT-23-6
Supplier Device Package PG-SOT23-6-2
Base Product Number 1EDN7511
Other Names 1EDN7511BXUSA1TR,1EDN7511BXUSA1DKR,SP001891288,1EDN7511BXUSA1CT,1EDN7511BXUSA1
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253518-1EDN7511BXUSA1
Ultra Librarian 3D Model Ultra Librarian 1EDN7511BXUSA1 CAD Model

Description

The 1EDN7511BXUSA1 is a single channel gate driver designed for use in half-bridge and low-side configurations.

  • Drives: N-channel and P-channel MOSFETs
  • Logic Voltage VIL: 1.2V
  • Logic Voltage VIH: 1.9V
  • Peak Output Current (Source): 4A
  • Peak Output Current (Sink): 8A
  • Rise Time: 6.5ns
  • Fall Time: 4.5ns
  • Operating Voltage: 4.5V to 20V
  • Temperature Range: -40°C to 150°C
  • Package: SOT-23-6
  • Packaging: tape and reel
