Same model may have multiple batches, images only for reference.

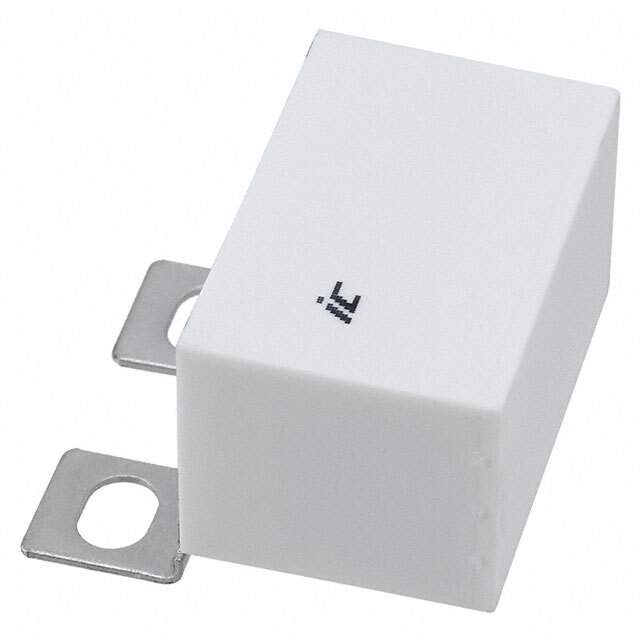

156PMC400KSP0 Real Image
Same model may have multiple batches, images only for reference.

156PMC400KSP0

Part No 156PMC400KSP0
Manufacturer Illinois Capacitor
Catalog Film Capacitors
Description CAP FILM 15UF 10% 400VDC QC TERM
Datasheet
156PMC400KSP0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Illinois Capacitor
Series PMC
Packaging Bulk
Capacitance 15μF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 400V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 1.9 mOhm
Operating Temperature Range -40°C ~ 100°C
Mounting Chassis Mount
Package Rectangular Box
Dimension 1.673" L x 1.299" W (42.50mm x 33.00mm)
Height - Seated (Maximum) 1.772" (45.00mm)
Termination Quick Connect
Applications Snubber
Win Source Part Number 764605-156PMC400KSP0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 156PMC400KSP0 CAD Model

Description

The Illinois Capacitor PMC400KSP0 is a high-quality polypropylene film capacitor that has a capacitance of 15μF and a voltage rating of 400V DC.

  • Tolerance: ±10%
  • ESR: 1.9 mOhm
  • Dielectric Material: Metallized Polypropylene
  • Package Size: Rectangular Box
  • Dimensions: 1.673 inches x 1.299 inches x 1.772 inches
  • Operating Temperature Range: -40°C to 100°C
  • Termination Type: Quick Connect
