The IDT7142SA55P is a high-speed Static RAM (SRAM) device manufactured by Integrated Device Technology (IDT). This SRAM is designed for applications requiring fast access times and reliable data storage. It is commonly used in systems where quick data retrieval and storage are essential, such as cache memory, high-speed data acquisition, and digital signal processing.

Applications:

• Cache Memory: Used in CPUs and other processors to provide fast access to frequently used data.
• High-Speed Data Acquisition: Employed in data logging and instrumentation systems where rapid data capture is needed.
• Digital Signal Processing (DSP): Provides fast memory for real-time signal processing applications.
• Networking Equipment: Used in routers and switches for packet buffering and forwarding.
• Embedded Systems: Suitable for applications where fast and reliable memory is required within a limited footprint.

Features:

• Fast Access Time: Offers an access time of 55ns, enabling quick data retrieval.
• High-Speed Operation: Designed for high-performance applications requiring fast read and write cycles.
• Low Power Consumption: Reduces energy usage in battery-powered or energy-sensitive systems.
• TTL-Compatible Inputs and Outputs: Allows easy interfacing with other digital components.
• 3-State Output: Enables the device to be easily connected to a shared bus.

Benefits:

• Improved System Performance: Fast access times enhance the overall speed and efficiency of the system.
• Reduced Latency: Minimizes delays in data retrieval, leading to better responsiveness.
• Lower Power Consumption: Contributes to energy savings and extends battery life in portable devices.
• Simplified Integration: TTL compatibility makes it easy to incorporate into existing digital circuits.
• Enhanced Reliability: Provides stable and dependable data storage.

Additional Details:

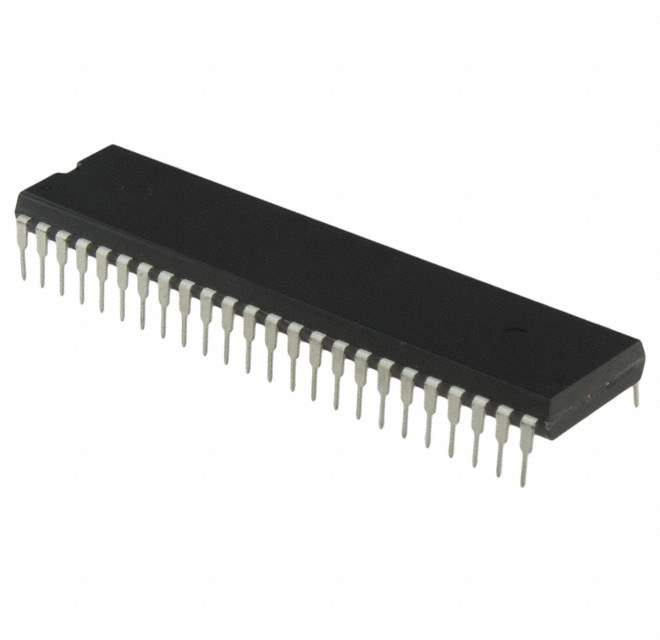

The IDT7142SA55P is organized as 4K x 8 bits, providing a total storage capacity of 32 kilobits. It operates on a single 5V power supply. The device is available in a plastic DIP (Dual In-line Package), which facilitates easy prototyping and integration. Its operating temperature range typically spans from 0°C to 70°C, making it suitable for standard operating environments.

This SRAM is particularly useful in applications where speed and reliability are paramount. Its fast access time and robust design make it a preferred choice for critical memory requirements in various electronic systems. Proper decoupling and adherence to the manufacturer's specifications are essential for optimal performance.
