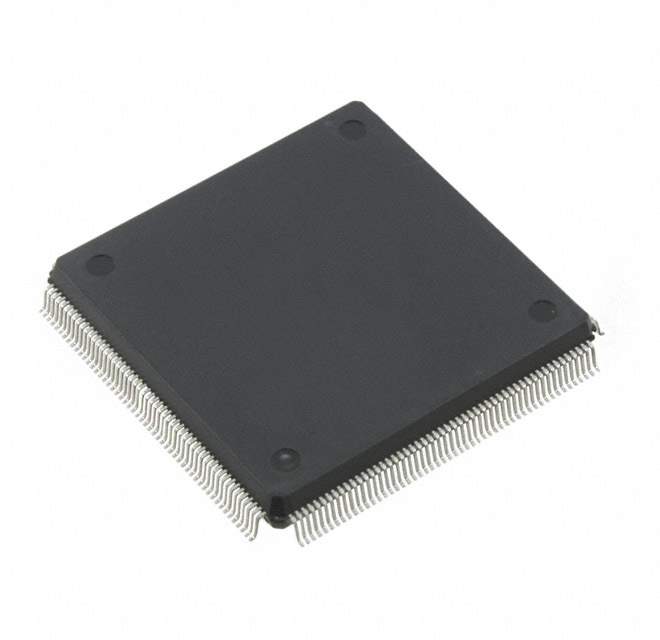

The IDT70V3569S6DR is a high-speed synchronous FIFO (First-In, First-Out) memory with a capacity of 64K x 36 bits. This device is designed for applications requiring high-bandwidth data buffering and asynchronous data transfer between systems operating at different clock speeds.

Applications

• Networking Equipment
• Telecommunications Systems
• Data Communications
• Digital Signal Processing (DSP)
• Video Processing

Features

• High-speed operation: 6ns access time
• 64K x 36-bit memory organization
• Synchronous operation
• Empty, Full, and Half-Full flags
• LVTTL-compatible inputs and outputs
• Single 3.3V power supply

Benefits

• High-bandwidth data buffering
• Asynchronous data transfer between systems
• Simplified system design with synchronous operation
• Easy monitoring of FIFO status with Empty, Full, and Half-Full flags
• Easy interfacing with standard logic levels

Technical Specifications

The IDT70V3569S6DR operates from a single 3.3V power supply. Its access time is 6ns. The device features LVTTL-compatible inputs and outputs. It includes Empty, Full, and Half-Full flags for monitoring FIFO status. The operating temperature range is typically industrial (-40°C to +85°C).
