Same model may have multiple batches, images only for reference.

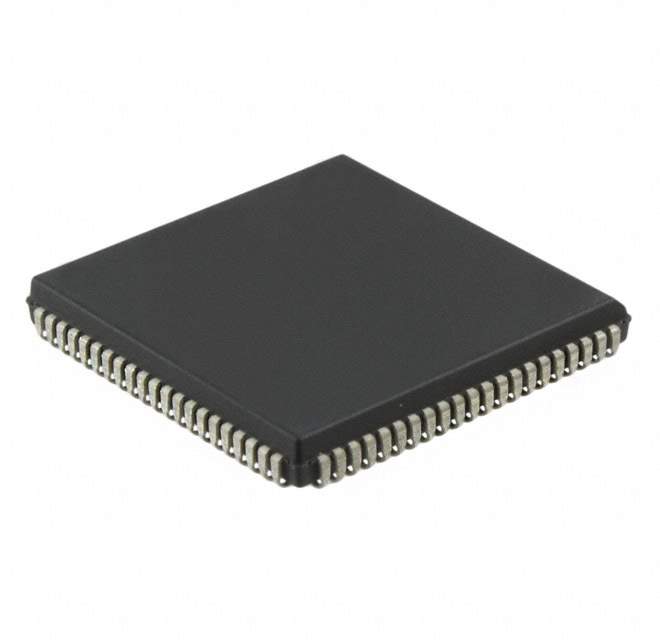

7024S15J8 Real Image
Same model may have multiple batches, images only for reference.

7024S15J8

Part No 7024S15J8
Manufacturer IDT, Integrated Device Technology Inc
Catalog SRAM
Description IC SRAM 64KBIT 15NS 84PLCC
Datasheet
7024S15J8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Reel package
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Dual Port, Asynchronous
Memory Size 64Kb (4K x 16)
Write Cycle Time - Word, Page 15ns
Access Time 15ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 84-LCC (J-Lead)
Manufacturer Package 84-PLCC (29.21x29.21)
Win Source Part Number 764635-7024S15J8
Popularity Medium
Supply and Demand Status Limited
Family Name 7024S
Introduction Date October 01, 1996
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 7024S15J8 CAD Model

Description

The Integrated Device Technology Inc 764635-7024S15J8 is a SRAM dual port, asynchronous, 64Kb (4K x 16) memory module.

  • Write Cycle Time: 15ns
  • Parallel Memory Interface: Yes
  • Package: 84-LCC (J-Lead)
  • Mounting: SMD
  • Technology: SRAM
  • Volatile Memory: Yes
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Operating Temperature Range: 0°C ~ 70°C (TA)
  • Estimated EOL Date: Obsolete
  • Halogen Free: Yes
