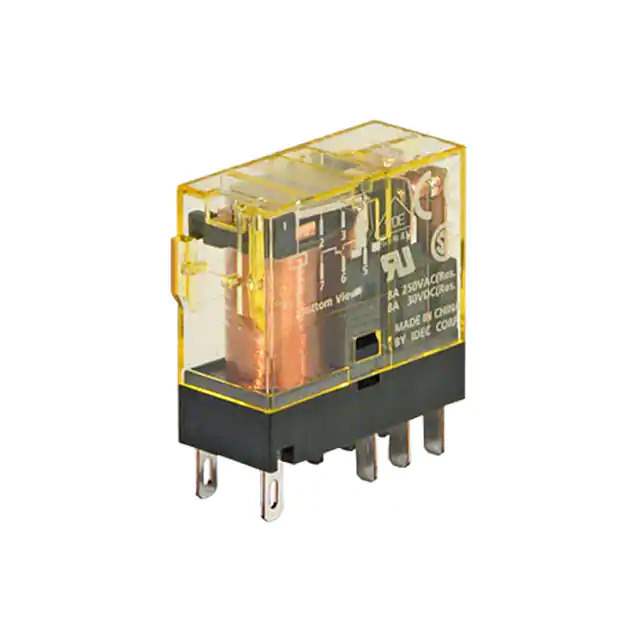

RJ2S-CL-D12 Real Image
Same model may have multiple batches, images only for reference.

RJ2S-CL-D12

Part No RJ2S-CL-D12
Manufacturer IDEC
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 12V
Datasheet
RJ2S-CL-D12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr IDEC
Series RJ
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC - Nom
Coil Current 48 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 271 Ohms
Base Product Number RJ2S
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0050
California Prop 65 Warning Information
Win Source Part Number 891728-RJ2S-CL-D12
Ultra Librarian 3D Model Ultra Librarian RJ2S-CL-D12 CAD Model

Description

The 891728-RJ2S-CL-D12 is a DPDT power relay from the RJ series.

  • Termination Style: Plug-in
  • Feature: Lighted indicator
  • Application: Power
  • Contact Rating: 8A
  • Contact Material: Silver nickel (AgNi)
  • Coil Voltage: 12VDC
  • Coil Resistance: 271 Ohms
  • Operate Time: 15ms
  • Release Time: 10ms
  • Temperature Range: -40°C to 70°C
  • Status: Active
  • Manufacturer: IDEC
  • Contact Form: DPDT
