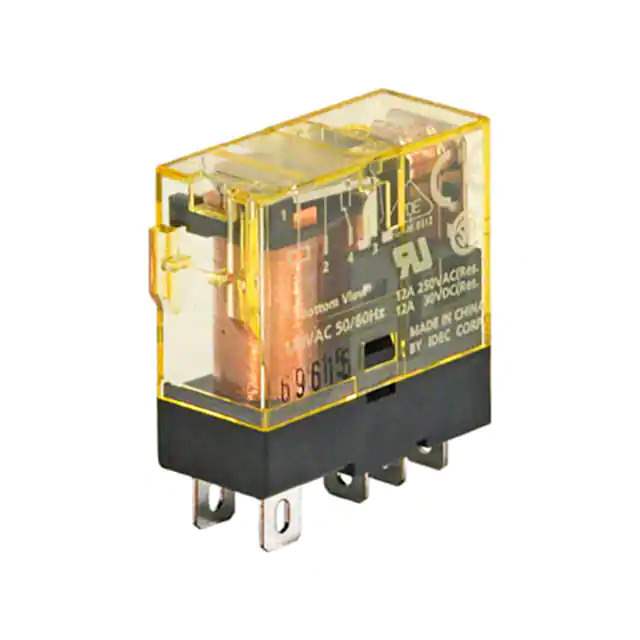

RJ1S-C-A24 Real Image
Same model may have multiple batches, images only for reference.

RJ1S-C-A24

Part No RJ1S-C-A24
Manufacturer IDEC
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 24V
Datasheet
RJ1S-C-A24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr IDEC
Series RJ
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 24VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 250VAC - Nom
Coil Current 37.5 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 19.2 VAC
Must Release Voltage 7.2 VAC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 243 Ohms
Base Product Number RJ1S
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0075
California Prop 65 Warning Information
Win Source Part Number 891720-RJ1S-C-A24
Ultra Librarian 3D Model Ultra Librarian RJ1S-C-A24 CAD Model

Description

The RJ1S-C-A24 is a power relay designed for high-current applications.

  • Series: RJ
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Voltage: 24VAC
  • Coil Resistance: 243 Ohms
  • Coil Current: 37.5 mA
  • Operate Time: 15 ms
  • Release Time: 10 ms
  • Contact Rating: 12A
  • Switching Voltage: 250VAC
  • Socketable: Yes
  • Operating Temperature: -40°C to 70°C
  • Manufacturer: IDEC
  • Status: Active
