Same model may have multiple batches, images only for reference.

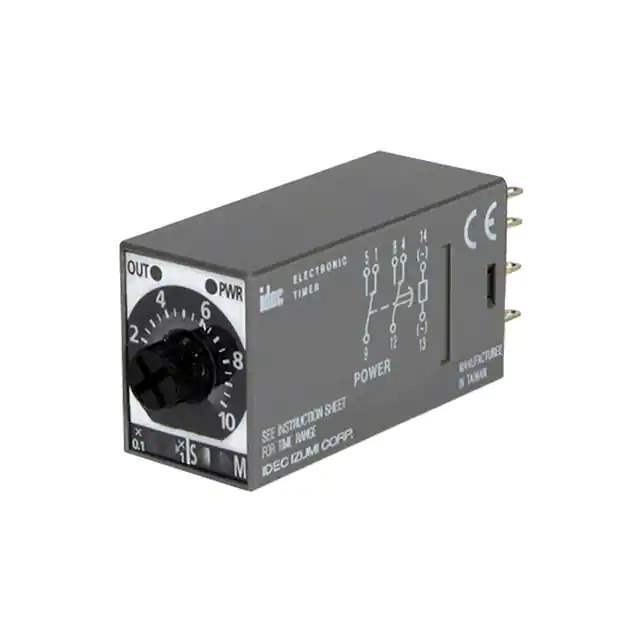

GT5Y-2SN3D24 Real Image
Same model may have multiple batches, images only for reference.

GT5Y-2SN3D24

Part No GT5Y-2SN3D24
Manufacturer IDEC
Catalog Time Delay Relays
Description RELAY TIME DELAY 30MIN 5A 220V
Datasheet
GT5Y-2SN3D24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls - Time Delay Relays
Mfr IDEC
Series GT5Y
Package Bulk
Product Status Active
Mounting Type Socketable
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 0.1 Sec ~ 30 Min
Contact Rating @ Voltage 5A @ 220VAC/30VDC
Voltage - Supply 24VDC
Termination Style Plug In
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage
Base Product Number GT5Y
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
California Prop 65 Warning Information
Win Source Part Number 873055-GT5Y-2SN3D24
Ultra Librarian 3D Model Ultra Librarian GT5Y-2SN3D24 CAD Model

Description

The 873055-GT5Y-2SN3D24 is a time delay relay from the GT5Y series by IDEC. It features a DPDT (2 Form C) circuit and a contact rating of 5A @ 220VAC/30VDC.

  • Series: GT5Y
  • Circuit: DPDT (2 Form C)
  • Contact Rating: 5A @ 220VAC/30VDC
  • Delay Time: 0.1 second to 30 minutes (adjustable)
  • Timing Initiation: Input Voltage
  • Coil Voltage: 24VDC
  • Mounting Type: Socketable
  • Status: Active
