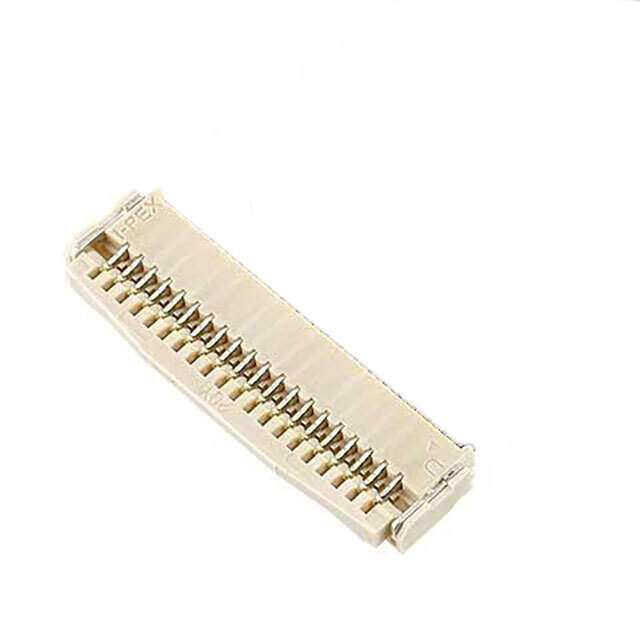

20542-012E-01 Real Image
Same model may have multiple batches, images only for reference.

20542-012E-01

Part No 20542-012E-01
Manufacturer I-Pex
Catalog FFC, FPC (FlatFlexible) Connectors
Description MINIFLEX 5-BFN II / 12 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer I-Pex
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 500mA per Contact
Contact Finish Thickness 4.00µin (0.10µm)
Housing Color Beige
Actuator Color Beige
Mating Cycles 20
Base Product Number 20542
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 3508-20542-012E-01DKR,3508-20542-012E-01TR,3508-20542-012E-01CT
Standard Package 5,000
Win Source Part Number 1333280-20542-012E-01
Ultra Librarian 3D Model Ultra Librarian 20542-012E-01 CAD Model

Description

The 1333280-20542-012E-01 is a FFC/FPC connector assembly manufactured by I-Pex.

  • Positions: 12
  • Pitch: 0.020 inches
  • Voltage Rating: 50V
  • Current Rating: 500mA per contact
  • Locking Feature: Flip Lock and Backlock
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mounting Style: Surface Mountable, Right-Angle
