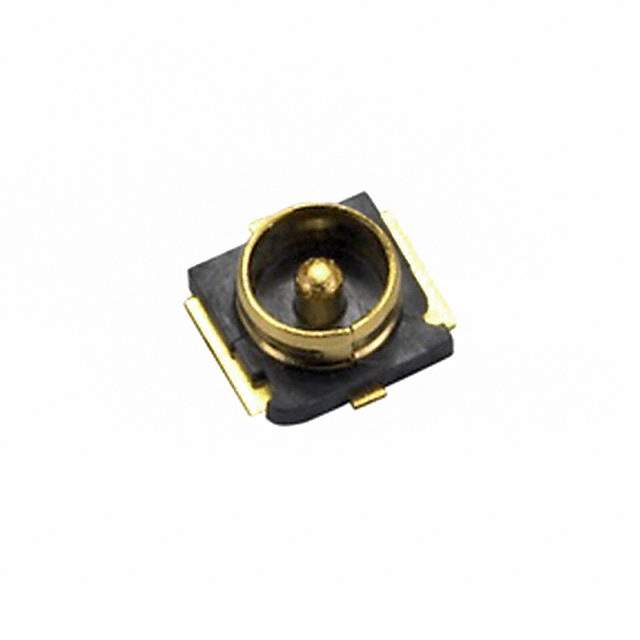

The I-Pex 20369-001E is a miniature coaxial connector commonly used for RF signal transmission in compact electronic devices. These connectors are designed to provide reliable and high-frequency performance while occupying minimal board space. They are frequently employed in applications where space is limited, such as wireless modules and portable communication equipment.

Applications

• Wireless LAN (WLAN) modules
• Bluetooth modules
• GPS receivers
• Mobile phones
• Laptop computers
• IoT (Internet of Things) devices

Features

• Compact size for space-constrained applications
• High-frequency performance up to several GHz
• Low insertion loss
• High return loss
• Secure and reliable mating
• Surface mount technology (SMT) compatibility
• Durable construction for repeated mating cycles

Benefits

• Reduced board space requirements
• Reliable signal transmission at high frequencies
• Minimized signal degradation
• Improved overall system performance
• Easy integration into automated assembly processes
• Long-term reliability in demanding environments
• Consistent electrical performance

Additional Details

The 20369-001E connector typically features a gold-plated center contact and a robust housing to ensure reliable electrical connection and mechanical durability. Its small footprint and low profile make it ideal for applications where miniaturization is a key design consideration. The connector's specifications include a characteristic impedance of 50 ohms, a voltage standing wave ratio (VSWR) that ensures efficient signal transfer, and a wide operating temperature range. Proper soldering and handling techniques are essential to maintain the connector's integrity and performance. Consult the manufacturer's datasheet for detailed specifications and application guidelines.
