Same model may have multiple batches, images only for reference.

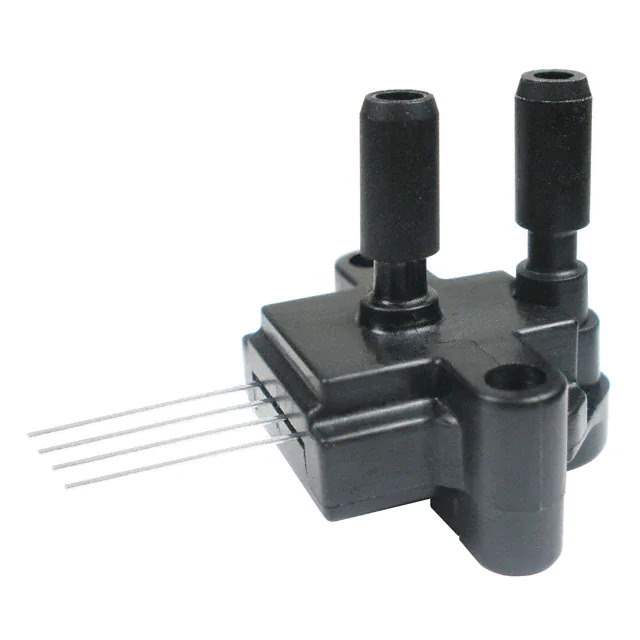

TSCSNBN005PDUCV Real Image
Same model may have multiple batches, images only for reference.

TSCSNBN005PDUCV

Part No TSCSNBN005PDUCV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSID 0.19" .05V 4SIP
Datasheet
TSCSNBN005PDUCV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series TruStability® TSC
Package Tray
Product Status Active
Applications Board Mount
Pressure Type Differential
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV (5V)
Accuracy ±0.15%
Voltage - Supply 1.5V ~ 12V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±30PSI (±206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP, Dual Ports, Same Side
Supplier Device Package 4-SIP
Base Product Number TSCSNBN
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846545-TSCSNBN005PDUCV
Ultra Librarian 3D Model Ultra Librarian TSCSNBN005PDUCV CAD Model

Description

The TruStability TSC series pressure sensor is a high-quality electronic component designed for accurate pressure measurement in various applications.

  • Termination Style: PC Pin
  • Package Type: Tray
  • Mounting Type: Board Mount
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV to 50 mV @ 5V
  • Accuracy: ±0.15%
  • Pressure Range: ±5PSI
  • Maximum Pressure: ±30PSI
  • Voltage Supply: 1.5V to 12V
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Honeywell
