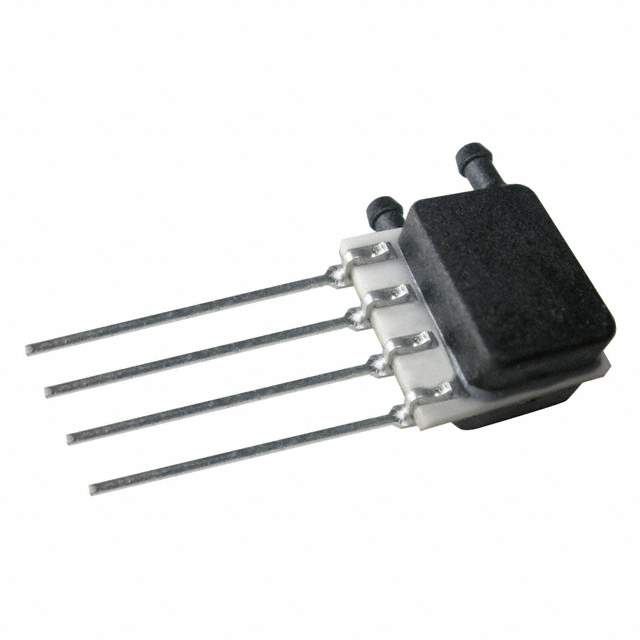

SSCSRRN001PGAA3 Real Image
Same model may have multiple batches, images only for reference.

SSCSRRN001PGAA3

Part No SSCSRRN001PGAA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 1PSI GAUG 3.3V SIP / Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.08" (1.92mm) Tube, Dual 0.33 V ~ 2.97 V 4-SIP, Dual Ports, Same Side
Datasheet
SSCSRRN001PGAA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1PSI (6.89kPa)
Output Type Analog Voltage
Output 0.33 V ~ 2.97 V
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.08" (1.92mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 10PSI (68.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Same Side
Supplier Device Package 4-SIP
Base Product Number SSCSRRN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234418-SSCSRRN001PGAA3
Ultra Librarian 3D Model Ultra Librarian SSCSRRN001PGAA3 CAD Model

Description

The TruStability® SSC pressure sensor is an amplified output and temperature compensated sensor with an analog voltage output type.

  • Output: Amplified
  • Temperature Compensation: Yes
  • Output Type: analog voltage
  • Pressure Type: vented gauge
  • Operating Pressure: 1PSI (6.89kPa)
  • Maximum Pressure: 10PSI (68.95kPa)
  • Board Mount: Yes
  • Voltage Supply: 3V ~ 3.6V
  • Package: 4-SIP, Dual Ports, Same Side
  • Standard Package: 20
  • Termination: PC Pin
  • Port Size: Male - 0.08" (1.92mm) Tube, Dual
  • Port Style: Barbed
  • Accuracy: ±0.25%
  • Temperature Range: -40°C ~ 85°C
