Same model may have multiple batches, images only for reference.

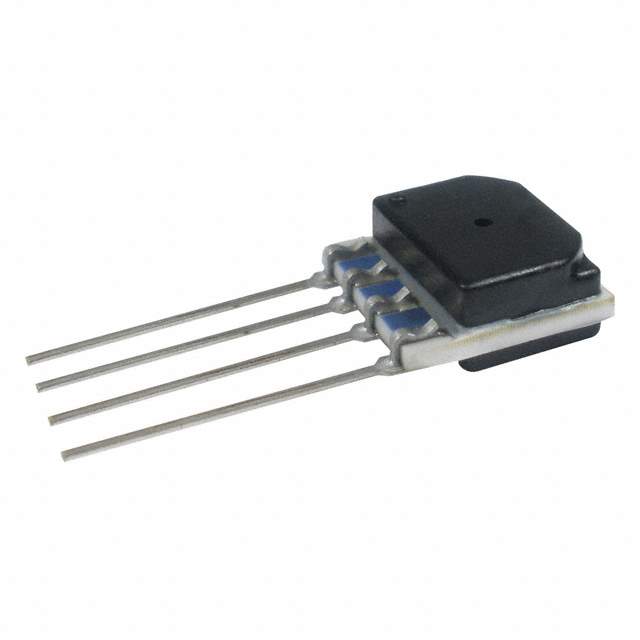

SSCSNNV004BAAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSNNV004BAAA5

Part No SSCSNNV004BAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 4PSI ABSO 5V SIP  /  Pressure Sensor 58.02PSI (400kPa) Absolute 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSNNV004BAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 58.02PSI (400kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 116.03PSI (800kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSNNV
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234697-SSCSNNV004BAAA5
Ultra Librarian 3D Model Ultra Librarian SSCSNNV004BAAA5 CAD Model

Description

The TruStability® SSC pressure sensor from Honeywell Sensing and Productivity Solutions is a high-performance sensor designed for board mount applications.

  • Output: Amplified
  • Temperature Compensated: Yes
  • Output Type: Analog Voltage
  • Output Range: 0.5 V ~ 4.5 V
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure: 58.02PSI (400kPa)
  • Maximum Pressure: 116.03PSI (800kPa)
  • Voltage Supply: 4.75V ~ 5.25V
  • Termination Style: PC Pin
  • Package: 4-SIP module
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
