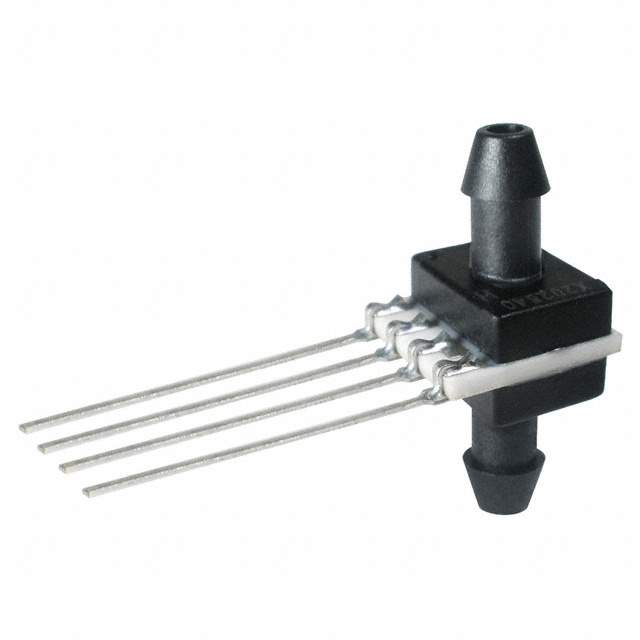

SSCSAAN001BG2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCSAAN001BG2A3

Part No SSCSAAN001BG2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.19" (4.93mm) Tube, Dual 12 b 4-SIP, Dual Ports, Opposite Sides
Datasheet
SSCSAAN001BG2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 14.5PSI (100kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 29.01PSI (200kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Opposite Sides
Supplier Device Package 4-SIP
Base Product Number SSCSAAN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234463-SSCSAAN001BG2A3
Ultra Librarian 3D Model Ultra Librarian SSCSAAN001BG2A3 CAD Model

Description

The TruStability® SSC series pressure sensor is a reliable and accurate sensor for measuring pressure in board mount applications.

  • Features: amplified output and is temperature compensated
  • Pressure Type: vented gauge
  • Operating Pressure: 14.5PSI (100kPa)
  • Port Size: male - 0.19" (4.93mm) tube
  • Port Style: barbed
  • Maximum Pressure: 29.01PSI (200kPa)
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Voltage Supply: 3V ~ 3.6V
  • Package: 4-SIP, dual ports, opposite sides
