Same model may have multiple batches, images only for reference.

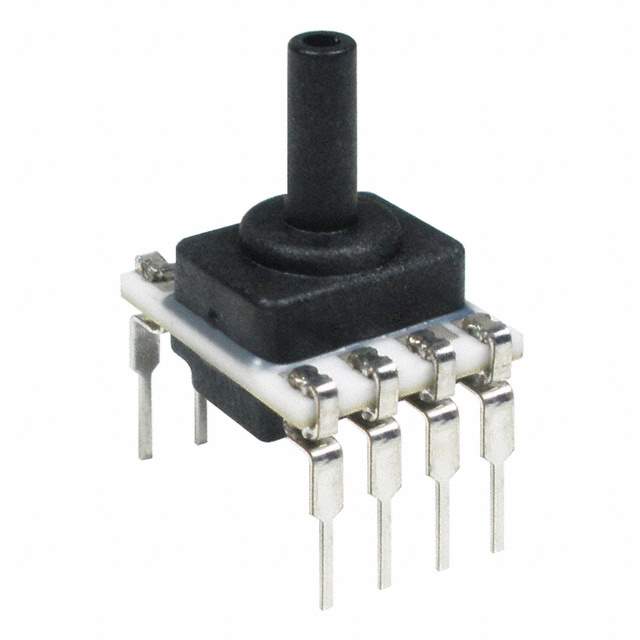

SSCDLNN010MD2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCDLNN010MD2A3

Part No SSCDLNN010MD2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 10PSI DIFF 3.3V DIP / Pressure Sensor ±0.15PSI (±1kPa) Differential Male - 0.1" (2.47mm) Tube 12 b 8-DIP (0.524", 13.30mm), Top Port
Datasheet
SSCDLNN010MD2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.15PSI (±1kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3.27V ~ 3.33V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±10.88PSI (±75kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package 8-DIP
Base Product Number SSCDLNN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234658-SSCDLNN010MD2A3
Ultra Librarian 3D Model Ultra Librarian SSCDLNN010MD2A3 CAD Model

Description

The TruStability® SSC pressure sensor is a high-performance sensor designed for use in board mount applications.

  • Output: Amplified
  • Temperature Compensated: Yes
  • Pressure Type: differential
  • Operating Pressure: ±0.15PSI (±1kPa)
  • Port Style: male 0.1" (2.47mm) tube
  • Maximum Pressure: ±10.88PSI (±75kPa)
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Voltage Supply: 3.27V ~ 3.33V
  • Package/Case: 8-DIP (0.524", 13.30mm), Top Port
  • Supplier Device Package: 8-DIP
  • Operating Temperature Range: -40°C ~ 85°C
