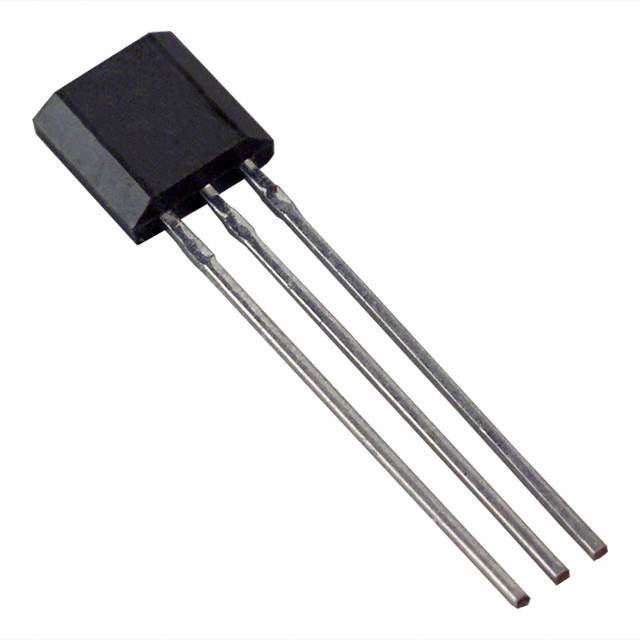

SS411A-L Real Image
Same model may have multiple batches, images only for reference.

SS411A-L

Part No SS411A-L
Manufacturer Honeywell
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH BIPOLAR RADIAL / Digital Switch Bipolar Switch Open Collector Hall Effect Radial Lead
Datasheet
SS411A-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Honeywell Sensing and Productivity Solutions
Series SS400
Package Bulk
Function Bipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 6mT Trip, -6mT Release
Test Condition 25°C
Voltage - Supply 3.8V ~ 30V
Current - Supply (Max) 10mA
Current - Output (Max) 20mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 150°C (TA)
Mounting Type Through Hole
Supplier Device Package Radial Lead
Package / Case 3-SIP
Base Product Number SS411
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235203-SS411A-L
Ultra Librarian 3D Model Ultra Librarian SS411A-L CAD Model

Description

The SS411A-L is a temperature-compensated bipolar switch magnetic sensor used in solid-state applications.

  • Type: Bipolar Switch
  • Technology: Hall-effect
  • Output Type: Open Collector
  • Polarization: North Pole and South Pole
  • Sensing Range: 6mT trip and -6mT release
  • Current Supply: 10mA
  • Current Output: 20mA
  • Temperature Range: -40°C to 150°C
  • Mounting: Through-hole
  • Package/Case: 3-SIP
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
