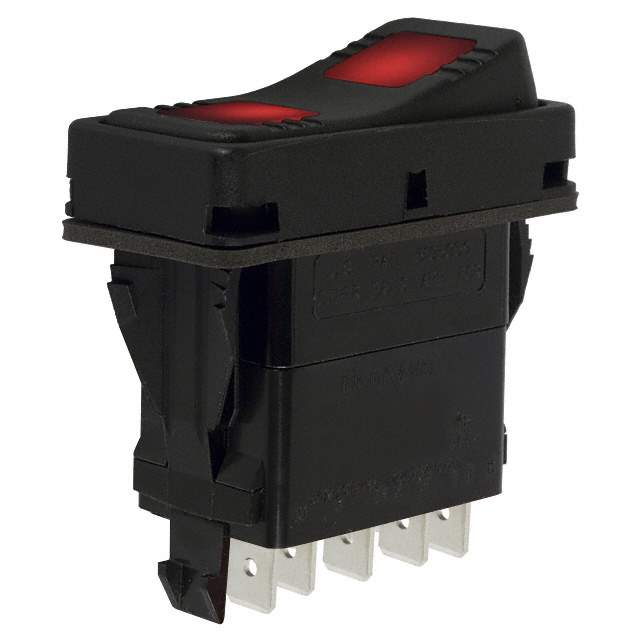

SRL91-27URR3-BB99 Real Image
Same model may have multiple batches, images only for reference.

SRL91-27URR3-BB99

Part No SRL91-27URR3-BB99
Manufacturer Honeywell
Catalog Rocker Switches
Description SWITCH ROCKER DPDT 15A 125V / Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
SRL91-27URR3-BB99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SRL
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit DPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Black
Actuator Marking No Marking
Illumination Type, Color LED, Red/Red
Illumination Voltage (Nominal) 12 VDC
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 36.83mm x 20.82mm
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 150,000 Cycles
Electrical Life 50,000 Cycles
Other Names 480-2163
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233235-SRL91-27URR3-BB99
Ultra Librarian 3D Model Ultra Librarian SRL91-27URR3-BB99 CAD Model

Description

The SRL rocker switch is a high-quality switch from Honeywell Sensing and Productivity Solutions.

  • Circuit: DPDT
  • Switch Function: Mom-Off-Mom
  • Actuator Type: Concave (curved) and illuminated with an illumination voltage (nominal) of 12V DC
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 150,000 cycles
  • Operating Temperature Range: Between -40°C to 85°C
  • Ingress Protection: IP68
  • Voltage Rating: 125V AC
  • Current Rating: 15A (AC)
  • Termination Style: Quick connect - 0.250" (6.3mm)
  • Mounting Type: Panel mount, snap-in
  • Panel Cutout Dimensions: Rectangular - 36.83mm x 20.82mm
