Same model may have multiple batches, images only for reference.

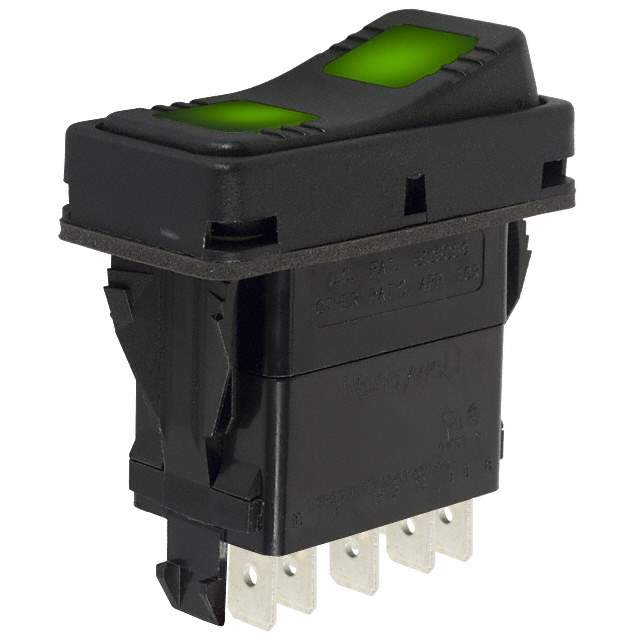

SRL91-22UGG3-BB99 Real Image
Same model may have multiple batches, images only for reference.

SRL91-22UGG3-BB99

Part No SRL91-22UGG3-BB99
Manufacturer Honeywell
Catalog Rocker Switches
Description SWITCH ROCKER DPST 15A 125V / Rocker Switch DPST 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
SRL91-22UGG3-BB99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SRL
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Black
Actuator Marking No Marking
Illumination Type, Color LED, Green/Green
Illumination Voltage (Nominal) 12 VDC
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 36.83mm x 20.82mm
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 150,000 Cycles
Electrical Life 100,000 Cycles
Other Names 480-2167
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233233-SRL91-22UGG3-BB99
Ultra Librarian 3D Model Ultra Librarian SRL91-22UGG3-BB99 CAD Model

Description

The Honeywell 1233233-SRL91-22UGG3-BB99 is a DPST rocker switch that belongs to the SRL series.

  • Circuit: DPST
  • Series: SRL
  • Actuator Type: Concave (curved) illuminated actuator type with LED green/green illumination type and color
  • Voltage Rating: 125V AC
  • Current Rating: 15A (AC)
  • Mounting: Panel mount, snap-in
  • Manufacturer: Honeywell Sensing and Productivity Solutions
