Same model may have multiple batches, images only for reference.

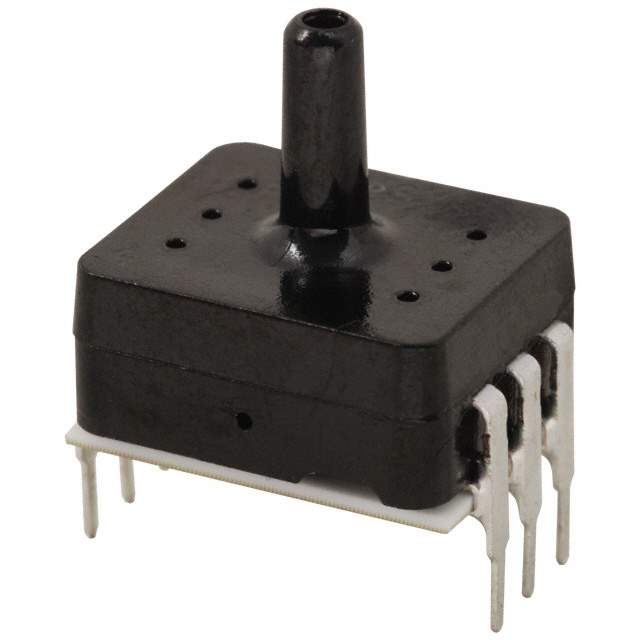

SDX15A2-A Real Image
Same model may have multiple batches, images only for reference.

SDX15A2-A

Part No SDX15A2-A
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS ABS 15PSI / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.11" (2.67mm) Tube 0 mV ~ 90 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Tray
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±0.25%
Voltage - Supply 20V
Port Size Male - 0.11" (2.67mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Base Product Number SDX15
Other Names 480-2866,SDX15A2A
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234779-SDX15A2-A
Ultra Librarian 3D Model Ultra Librarian SDX15A2-A CAD Model

Description

The SDX15A2-A is an absolute pressure sensor from Honeywell Sensing and Productivity Solutions.

  • Maximum Pressure: 30PSI (206.84kPa)
  • Operating Pressure: 15PSI (103.42kPa)
  • Output: Wheatstone Bridge
  • Accuracy: ±0.25%
  • Temperature Compensated: Yes
  • Operating Temperature: -40°C to 85°C
  • Package: 6-DIP Module
  • RoHS Compliant: Yes
