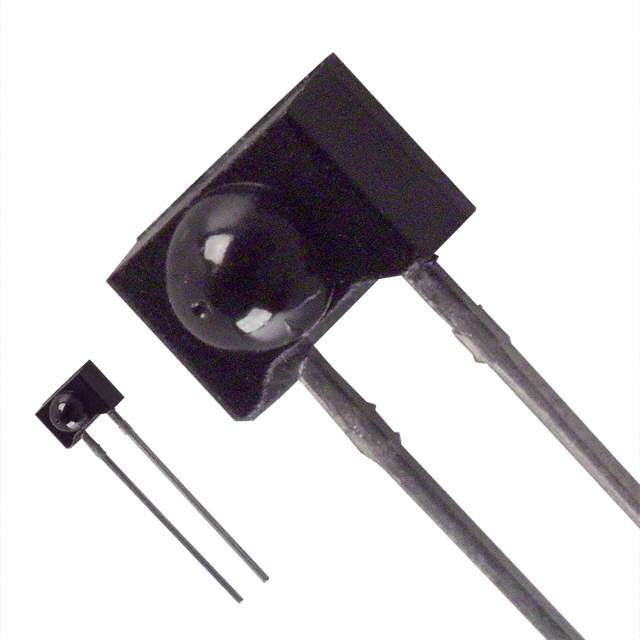

SDP8436-003 Real Image
Same model may have multiple batches, images only for reference.

SDP8436-003

Part No SDP8436-003
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 880NM SIDE VIEW RAD / Phototransistors 880nm Side View Radial
Datasheet
SDP8436-003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 17 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 880nm
Viewing Angle 18°
Power - Max 100 mW
Mounting Type Through Hole, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Radial
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Other Names Q4028845,SDP8436003,480-1958-NDR,480-1958
Standard Package 100
Win Source Part Number 1092137-SDP8436-003
Ultra Librarian 3D Model Ultra Librarian SDP8436-003 CAD Model

Description

The Honeywell SDP8436-003 phototransistor is a side-view through-hole sensor with a viewing angle of 18°.

  • Mounting Type: Through Hole
  • Viewing Angle: 18°
  • Voltage Rating: 30V
  • Current Rating: 17mA
  • Maximum Power: 100mW
  • Wavelength: 880nm
  • Operating Temperature Range: -40°C to 85°C
  • Package/Case: Radial
  • Applications: Optical sensors, encoders, and switches
