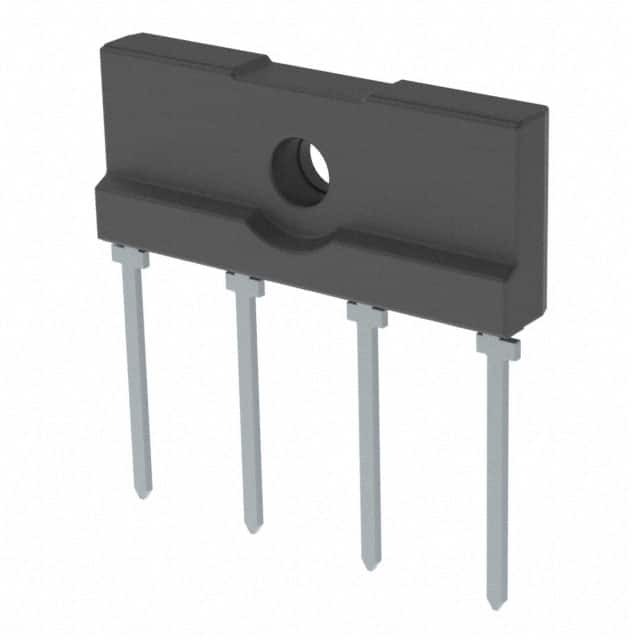

TS10KL80 D3G
Same model may have multiple batches, images only for reference.

TS10KL80 D3G

Part No TS10KL80 D3G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 10A KBJL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 9 Weeks
Features Bridge Rectifier Single Phase Standard 800 V Through Hole KBJL
Manufacturer Taiwan Semiconductor
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, KBJL
Case / Package KBJL
Family Name TS10KL80
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number TS10KL80D3G, TS10KL80 D3G-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937560-TS10KL80 D3G
Ultra Librarian 3D Model Ultra Librarian TS10KL80 D3G CAD Model

Description

This bridge rectifier is a single-phase standard 800 V through-hole KBJL with a current rating of 10A. Taiwan Semiconductor

  • Type: Bridge Rectifier
  • Phase: Single-Phase
  • Voltage: 800 V
  • Mounting: Through-Hole
  • Package: KBJL
  • Current: 10A
  • Category: Discrete Semiconductor Products
  • Package: 4-SIP, KBJL
  • Mounting: Through the Hole
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Family: TS10KL80
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Taiwan Semiconductor
