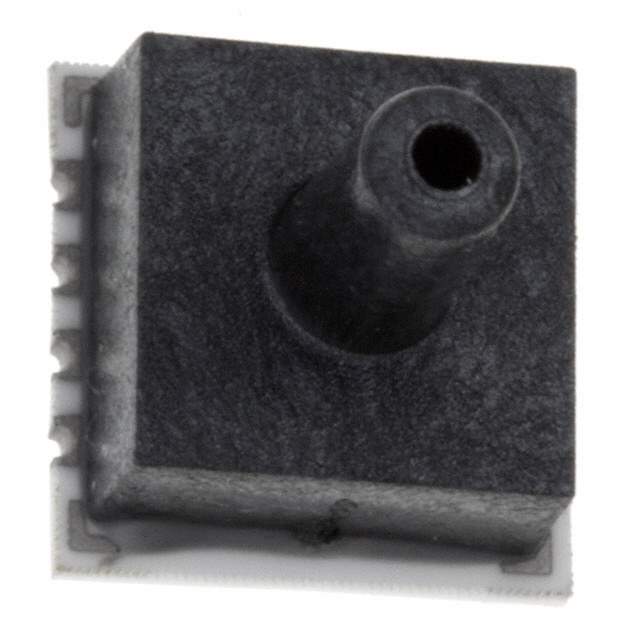

SCCP30ASMTP

Part No SCCP30ASMTP
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSI ABSOLUTE SMD / Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.08" (2.05mm) Tube 60 mV ~ 150 mV 8-SMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCC SMT
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 30PSI (206.84kPa)
Output Type Wheatstone Bridge
Output 60 mV ~ 150 mV
Accuracy ±1%
Port Size Male - 0.08" (2.05mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SMD Module
Base Product Number SCCP30
Other Names 480-3108,2266-SCCP30ASMTP
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234818-SCCP30ASMTP
Ultra Librarian 3D Model Ultra Librarian SCCP30ASMTP CAD Model

Description

The SCC SMT pressure sensor is a reliable and accurate sensor designed for board mount applications.

  • Temperature Compensated: Yes
  • Output: Wheatstone bridge
  • Output: 60 mV ~ 150 mV
  • Pressure Type: absolute
  • Operating Pressure: 30PSI (206.84kPa)
  • Maximum Pressure: 60PSI (413.69kPa)
  • Package/Case: 8-SMD Module
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
  • Base Product Number: SCCP30
