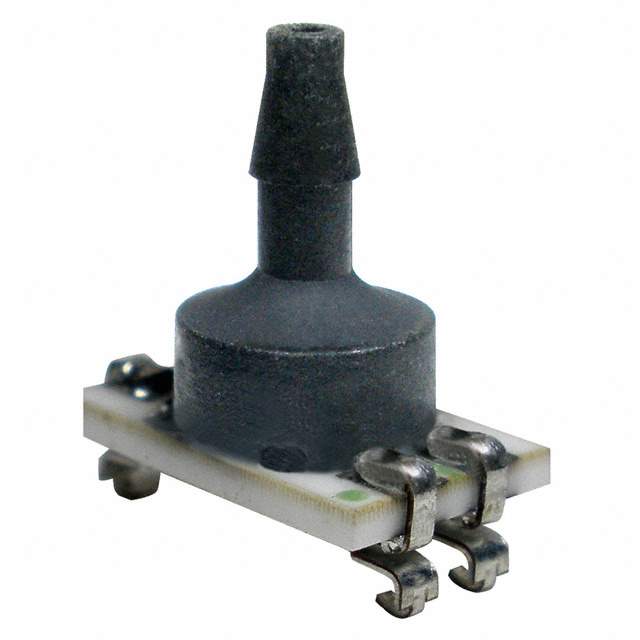

NBPMANN005PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMANN005PGUNV

Part No NBPMANN005PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BASIC MODEL LEADED SMT / Pressure Sensor 0psi to 5psi Gage 4-Pin SMD
Datasheet
NBPMANN005PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 5 PSI (34.47 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.11" (2.74mm) Tube
Port Style Barbed
Termination Style Surface Mount (SMD,SMT)
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-SMD, J-Lead, Top Port
Win Source Part Number 790547-NBPMANN005PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPMANN005PGUNV
Introduction Date March 11, 2013
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian NBPMANN005PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBP series pressure sensor is a high-precision device that is widely used in various applications.

  • Termination: Surface mount (SMD, SMT)
  • Package: 4-SMD, J-Lead, Top Port
  • Operating Temperature: -40°C to 125°C
  • Operating Supply Voltage: 1.8V to 12V
  • Output Type: Wheatstone Bridge
  • Output: 0mV to 75mV (5V)
  • Accuracy: ±0.25%
  • Pressure Type: Vented Gauge
  • Operating Pressure: 5 PSI (34.47 kPa)
  • Maximum Pressure: 30 PSI (206.84 kPa)
  • Port Size: Male-0.11 inches (2.74mm) tube
  • Port Style: Barbed
  • RoHS3 Compliant: Yes
  • Country of Origin: China
