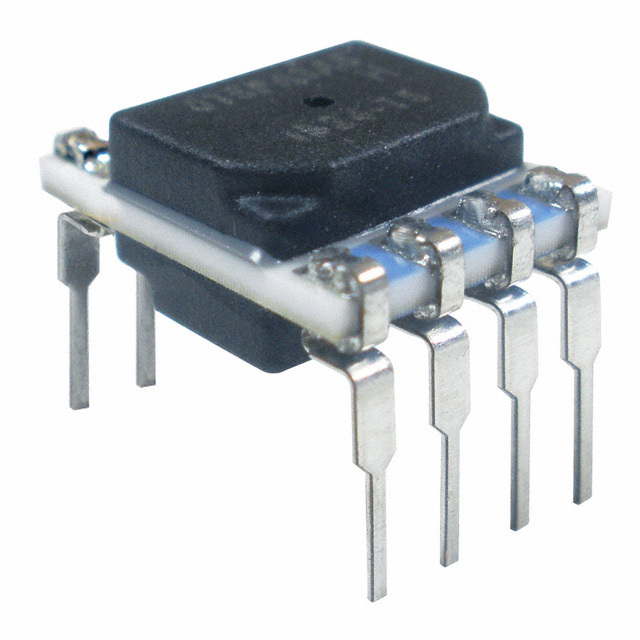

Same model may have multiple batches, images only for reference.
HSCDLNN060MGAA5 Honeywell – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HSCDLNN060MGAA5

Part No HSCDLNN060MGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 0.87PSIG 0.1\
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 0.87PSI (6kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 12.33PSI (85kPa)
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Case / Package 8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package 8-DIP
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1600141-HSCDLNN060MGAA5
Ultra Librarian 3D Model Ultra Librarian HSCDLNN060MGAA5 CAD Model

Description

N
