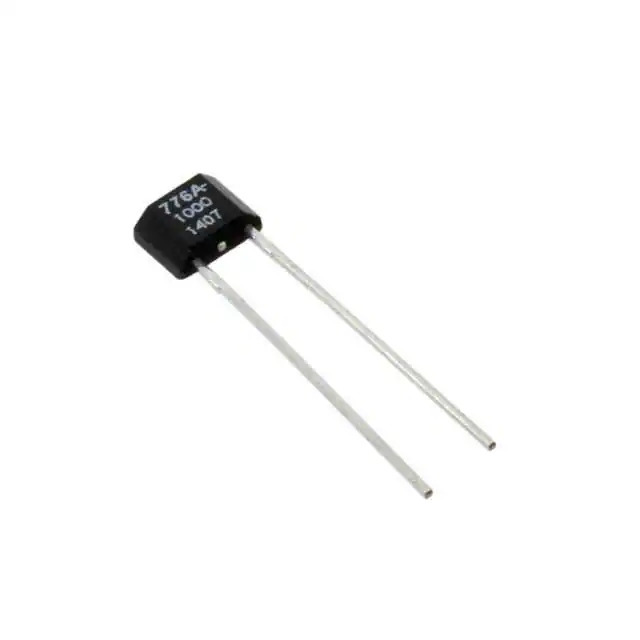

HEL-776-A-U-1 Honeywell
Same model may have multiple batches, images only for reference.

HEL-776-A-U-1

Part No HEL-776-A-U-1
Manufacturer Honeywell
Catalog Temperature Sensors - RTD (Resistance Temperature Detector)
Description SENSOR RTD 1KOHM RADIAL / 1 kOhms RTD Platinum (Pt) Radial
Datasheet
HEL-776-A-U-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - RTD (Resistance Temperature Detector)
Mfr Honeywell Sensing and Productivity Solutions
Series -
Package Bulk
Product Status Active
Resistance @ 0°C 1 kOhms
Resistance Tolerance ±0.1%
RTD Material Platinum (Pt)
Temperature Range - Operating -55°C ~ 150°C
Termination PC Pins
Accuracy ±0.5°C
Temperature Coefficient -
Current 1 mA
Mounting Type Through Hole
Package / Case Radial
Base Product Number HEL-776
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9025.80.1000
Win Source Part Number 1353242-HEL-776-A-U-1
Ultra Librarian 3D Model Ultra Librarian HEL-776-A-U-1 CAD Model

Description

The HEL-776-A-U-1 is a temperature sensor designed for use in various electronic applications from Honeywell Sensing and Productivity Solutions.

  • Operating Temperature Range: -55°C to 150°C
  • Sensor Type: Resistance Temperature Detector (RTD)
  • RTD Material: Platinum (Pt)
  • Resistance Tolerance: ±0.1%
  • Accuracy: ±0.5°C
  • Current Rating: 1mA
  • Resistance @ 0°C: 1 kOhms
  • Mounting Type: Through-Hole
  • Termination Style: PC Pins
  • Product Status: Active
  • Packaging: Bulk
