Same model may have multiple batches, images only for reference.

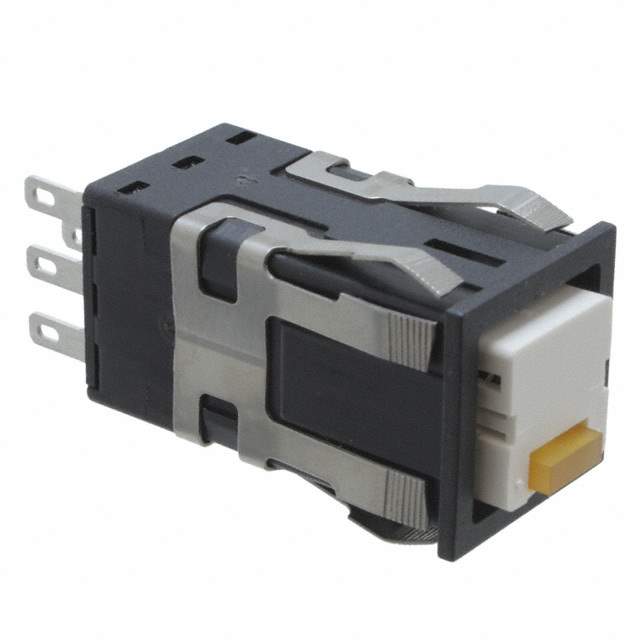

AML22CBJ2AA Real Image
Same model may have multiple batches, images only for reference.

AML22CBJ2AA

Part No AML22CBJ2AA
Manufacturer Honeywell
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 125V / Switch Push Button N.O./N.C. SPDT Square Button Momentary Contact Panel Mount Quick Connect/Solder
Datasheet
AML22CBJ2AA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Honeywell Sensing and Productivity Solutions
Series AML22
Packaging Bulk
Type Standard, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating 3A (AC), 2A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 24V
Actuator Type Square, Button (Not Included)
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 5 VDC
Mounting Panel Mount, Snap-In
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions Square - 19.05mm2
Mechanical Life 100,000 Cycles
Electrical Life 100,000 Cycles
Win Source Part Number 770036-AML22CBJ2AA
Popularity Medium
Supply and Demand Status Limited
Family Name AML22
Introduction Date February 03, 1998
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AML22CBJ2AA CAD Model

Description

The Honeywell Sensing and Productivity Solutions AML22CBJ2AA is a standard and illuminated type switch with a snap-in panel mount and SPDT circuit.

  • Actuator Type: Square, button (not included)
  • Switch Function: On-Mom
  • Current Rating: 3A (AC), 2A (DC)
  • Voltage Rating: 125V (AC), 24V (DC)
  • Panel Cutout Dimensions: Square - 19.05mm2
  • Termination Style: Solder and quick connect - 0.110" (2.8mm)
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 100,000 cycles
  • Illumination: Yellow LED
  • Illumination Voltage: 5 VDC
  • Series: AML22
