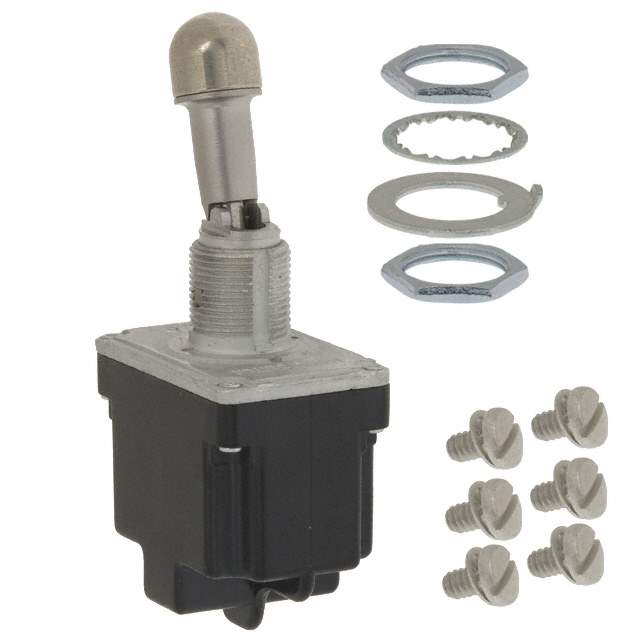

2TL1-3D Real Image
Same model may have multiple batches, images only for reference.

2TL1-3D

Part No 2TL1-3D
Manufacturer Honeywell
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 15A 125V / Toggle Switch DPDT Panel Mount
Datasheet
2TL1-3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr Honeywell Sensing and Productivity Solutions
Series TL
Package Bulk
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Locking Lever
Actuator Length 26.67mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection Environment Sealed
Temperature Range - Operating -65°C ~ 71°C
Actuator Material Nickel Plated
Base Product Number 2TL1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names 480-2206,2TL13D
Standard Package 1
Win Source Part Number 1080323-2TL1-3D
Ultra Librarian 3D Model Ultra Librarian 2TL1-3D CAD Model

Description

The Honeywell Sensing and Productivity Solutions TL series toggle switch is a panel mount switch with DPDT circuitry.

  • Voltage Rating: 125V AC
  • Current Rating: 15A (AC)
  • Actuator Type: Locking lever
  • Bushing Thread: 15/32-32
  • Panel Cutout Dimensions: Circular - 12.40mm Dia.
  • Temperature Range: -65°C to 71°C
  • Package: Bulk
  • ECCN: EAR99
