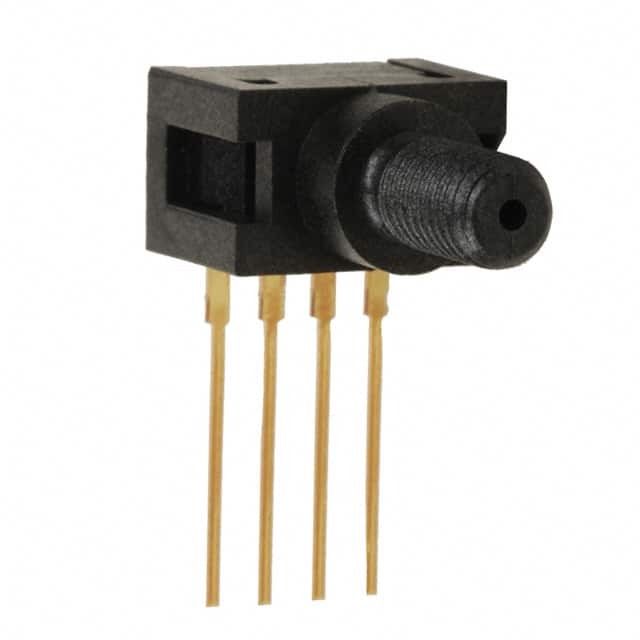

26PCCFH6G
Same model may have multiple batches, images only for reference.

26PCCFH6G

Part No 26PCCFH6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIC M5 0.1V
Datasheet
26PCCFH6G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±15PSI (±103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.5%
Voltage - Supply 2.5V ~ 16V
Port Size Male - M5
Port Style Threaded
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±45PSI (±310.26kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number 26PCCFH
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 906105-26PCCFH6G
Ultra Librarian 3D Model Ultra Librarian 26PCCFH6G CAD Model

Description

The Honeywell 26PC series pressure sensor is a temperature-compensated sensor designed for board mount applications.

  • Termination Style: PC pin
  • Output Type: Wheatstone Bridge
  • Output Voltage Range: 0mV to 100mV
  • Supply Voltage Range: 2.5V to 16V
  • Accuracy: ±0.5%
  • Pressure Range: ±15PSI
  • Package: 4-SIP module
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Standard Package: 25 pcs
