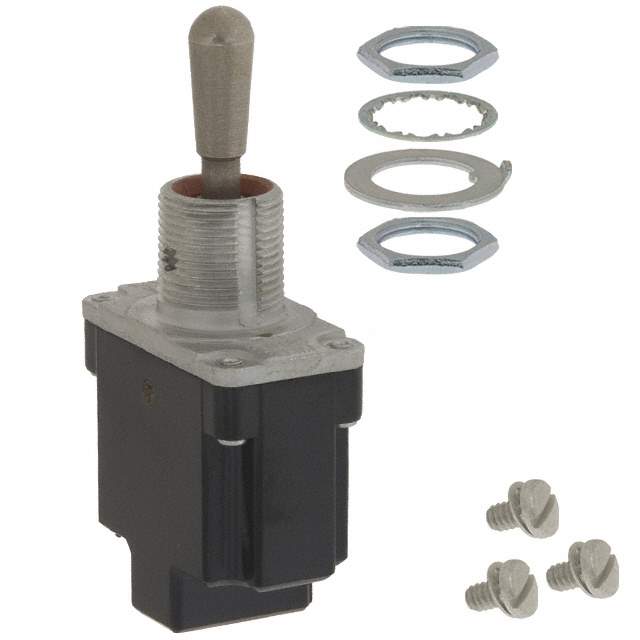

1TL1-2 Real Image
Same model may have multiple batches, images only for reference.

1TL1-2

Part No 1TL1-2
Manufacturer Honeywell
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 15A 125V / Toggle Switch SPST Panel Mount
Datasheet
1TL1-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr Honeywell Sensing and Productivity Solutions
Series TL
Package Bulk
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 17.27mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection Environment Sealed
Temperature Range - Operating -65°C ~ 71°C
Actuator Material Nickel Plated
Base Product Number 1TL1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names MS24523-22,1TL12,480-2192
Standard Package 1
Win Source Part Number 1227173-1TL1-2
Ultra Librarian 3D Model Ultra Librarian 1TL1-2 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1227173-1TL1-2 toggle switch is a high-quality switch that is perfect for use in a variety of applications. The switch is designed with a screw terminal termination style and is environment sealed, making it ideal for use in harsh environments. The actuator material is nickel plated, and the switch has a voltage rating of 125 V AC.

  • Circuit: SPST
  • Switch Function: on-off
  • Actuator Type: standard round
  • Bushing Thread: 15/32-32
  • Mount: panel mount
  • Temperature Range: -65°C to 71°C
