Same model may have multiple batches, images only for reference.

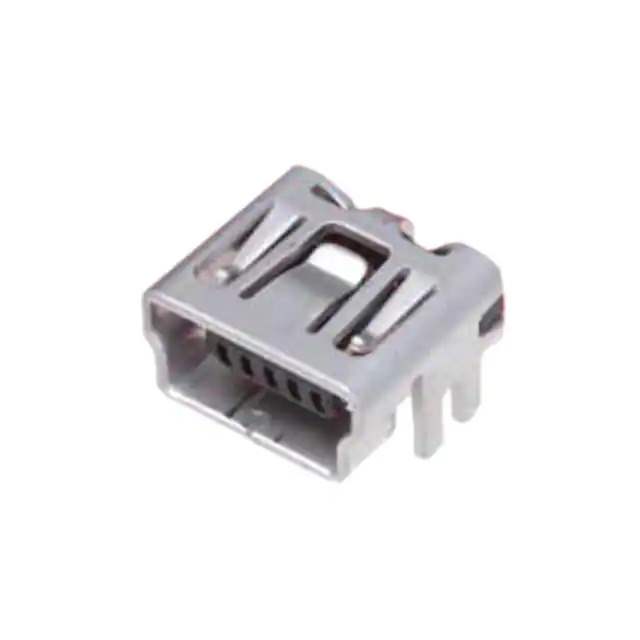

UX60SC-MB-5S8(80) Real Image
Same model may have multiple batches, images only for reference.

UX60SC-MB-5S8(80)

Part No UX60SC-MB-5S8(80)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
Datasheet
UX60SC-MB-5S8(80) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Hirose Electric Co Ltd
Series UX
Package Tape & Reel
Product Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C ~ 75°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number UX60SC
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849431-UX60SC-MB-5S8(80)
Ultra Librarian 3D Model Ultra Librarian UX60SC-MB-5S8(80) CAD Model

Description

The UX60SC-MB-5S8(80) is a USB mini B connector assembly from Hirose Electric Co Ltd.

  • Series: UX
  • Feature: Solder Retention
  • Connector Type: USB - Mini B
  • Contacts: 5
  • Contact Finish: Gold
  • Package: Tape & Reel
  • Standard Package Size: 1,000 pcs
  • Shielded: Yes
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 30VAC
  • Operating Temperature Range: -30°C to 75°C
  • Shell/Shielding Material: Copper Alloy
  • Current Rating: 1A
