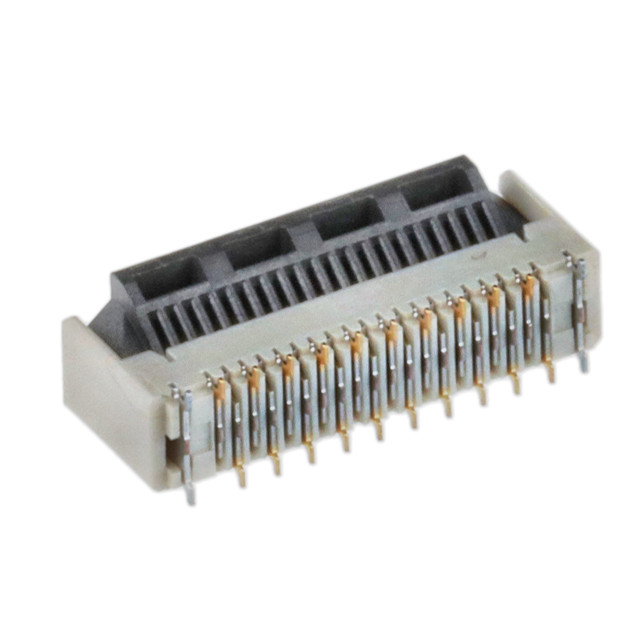

TF38-20S-0.5SV(830) Real Image
Same model may have multiple batches, images only for reference.

TF38-20S-0.5SV(830)

Part No TF38-20S-0.5SV(830)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC 20POS 0.50MM SMD / 20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
TF38-20S-0.5SV(830) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.205" (5.20mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number TF38
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 480-0215-8-30,26-TF38-20S-0.5SV(830)CT,26-TF38-20S-0.5SV(830)DKR,26-TF38-20S-0.5SV(830)TR
Standard Package 1,000
Win Source Part Number 1333264-TF38-20S-0.5SV(830)
Ultra Librarian 3D Model Ultra Librarian TF38-20S-0.5SV(830) CAD Model

Description

The TF38 Series 20-position FFC, FPC (Flat Flexible) Connector Assembly from Hirose Electric Co Ltd is a zero insertion force (ZIF) connector with a pitch of 0.020" (0.50mm).

  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Cable End Type: Tabbed
  • Housing Material: Liquid crystal polymer (LCP)
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 1.25µin (0.03µm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • RoHS3 Compliant: Yes
  • Material Flammability Rating: UL94 V-0
