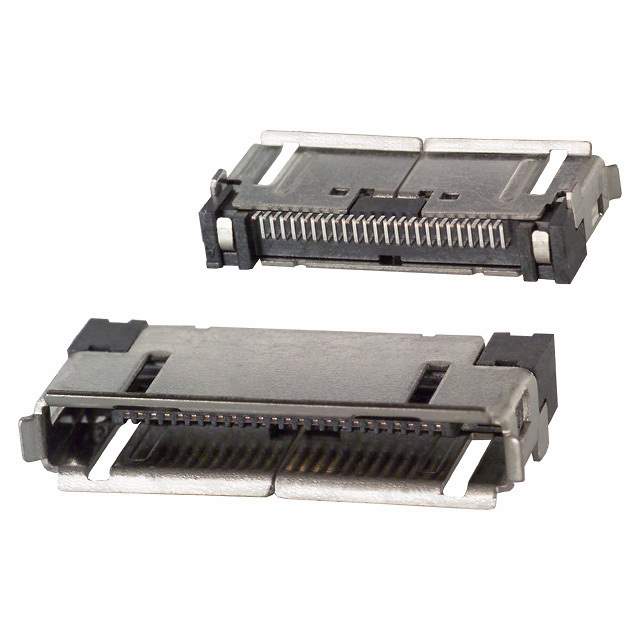

Same model may have multiple batches, images only for reference.

ST60-24P

Name: ST60-24P
Brand: Hirose Electric Co Ltd
SKU: 1293094
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ST60-24P
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tape & Reel (TR),Cut Tape (CT)
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Board Edge, Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide, Shielded
Current Rating (Amps)	0.5A
Voltage Rating	100VAC
Applications	General Purpose, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	ST60
Other Names	*ST60-24P,H1954TR,ST6024P,H1954CT
Standard Package	1,500
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293094-ST60-24P
Ultra Librarian 3D Model	Ultra Librarian ST60-24P CAD Model

Alternative Products

Description

The ST60-24P is a connector header with 24 positions from Hirose Electric Co Ltd.

Series: ST
Packaging: Tape and Reel/Cut Tape
Standard Package: 1500
Contact Material: Copper Alloy
Contact Finish: Gold
Current Rating: 0.5A
Voltage Rating: 100VAC
Applications: General Purpose, Telecommunications
